Specification Description
Table size: 18" x 98"
Table travels longitudinal: 64"
Table travels cross: 18"
Knee travel vertical: 21"
Min./max distance CL horizontal spindle to table: 21"
Min./max distance vertical spindle to table: 21"
Spindle taper horizontal: ISA #50
Spindle taper vertical attachment: ISA #50
Spindle speeds horizontal: 13-1300 rpm (24)
Main drive motor: 25 HP
Electrics: 220/440/3/60
Overall dimension (LxWxH): 105" x 121" x 74"

Equipped With:

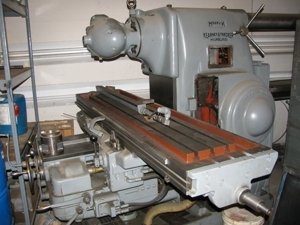

K&T Universal vertical head - 2 way swivel, #50 taper second machine available for parts at extra $3,500.00.
