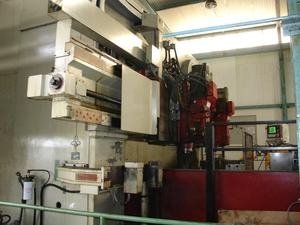

FOREST LINE CNC PLANO MILLER

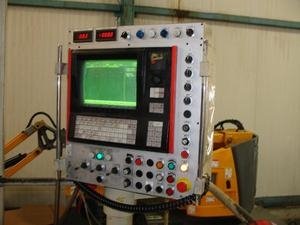

CNC system: NUM 1060
Width between columns 3 600 mm
Swing under spindles 1 000 mm
Length of each table 2 500 mm
Width of table 2 600 mm + 650 mm
Travel of each table - X axis 2 500 mm
Travel for coupled tables - X axis 5 500 mm
Transversal travel - Y1 axis 2 450 mm
Transversal travel - Y2 axis 1 850 mm
Cross rail travel - Z axis 800 mm
Rapids - X/Y axis 10 m/min
Rapids - Z axis 6 000 mm/min
Feed rate adjustable in continus - X/Y/Z axis 0 to 3 000 mm/min
Motor power of milling spindle 20 kW
Torque of milling spindle 180 m. daN
Speed of milling spindle in continus variation 10 to 2 200 RPM
Spindle nose ISO 50
Tool adjustment travel 0 to 40 mm
Machine weight 90 T
Totally retrofitted in 1997
Chip conveyor

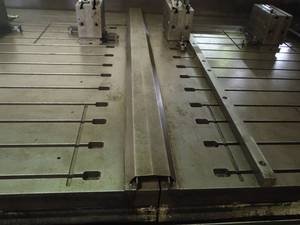

two mobile tables

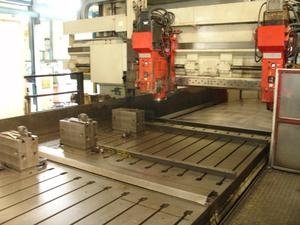

4 milling heads type F 20 DC
hydrostatic guiding
automatic lubrication
automatic tool changer with 48 positions.
Specifications:
FOREST LINE CNC PLANO MILLER
CNC system: NUM 1060
Width between columns 3 600 mm
Swing under spindles 1 000 mm
Length of each table 2 500 mm
Width of table 2 600 mm + 650 mm
Travel of each table - X axis 2 500 mm
Travel for coupled tables - X axis 5 500 mm
Transversal travel - Y1 axis 2 450 mm
Transversal travel - Y2 axis 1 850 mm
Cross rail travel - Z axis 800 mm
Rapids - X/Y axis 10 m/min
Rapids - Z axis 6 000 mm/min
Feed rate adjustable in continus - X/Y/Z axis 0 to 3 000 mm/min
Motor power of milling spindle 20 kW
Torque of milling spindle 180 m. daN
Speed of milling spindle in continus variation 10 to 2 200 RPM
Spindle nose ISO 50
Tool adjustment travel 0 to 40 mm
Machine weight 90 T
Totally retrofitted in 1997
Chip conveyor
two mobile tables
4 milling heads type F 20 DC
hydrostatic guiding
automatic lubrication
automatic tool changer with 48 positions.
