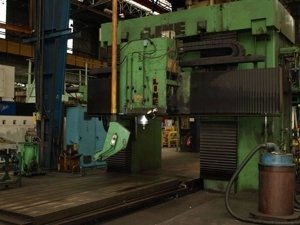

PLANER TYPE MILLING MACHINE
LINE SL 220 TM
Spindle motor power: 60 Kw
Spindle speed range: 20-800 r/min
Worktable size: 1830*4030 mm
travel of X-axis: 4450 mm
travel of Y axis: 2820 mm
travel of Z axis: 1450 mm
travel of W axis: 400 mm
distance between columns: 2100mm
rapid travel of X,Y,Z axis: 5000 mm/min
rapid travel of W axis: 500 mm/min
cutting feed speed range of X,Y,Z axis: 3000 mm/min
cutting feed speed range of W axis: 500 mm/min
Max. workpiece weight: 30000 kg
YOM: 1975
CNS system: Num 760
Weight of machine: 105000 kg
VERTICAL MILLING HEAD-motor power: 15 Kw
VERTICAL MILLING HEAD-motor power: 38 Kw
Max. speed: 350 r/min
speed multiplier of head:motor power: 18 Kw
length: 400 mm
speed multiplier of head:motor power: 20 Kw
max. speed: 2300 r/min
The machine had been retrofitted and equipped CNC in 1988,
Electrical cabinet is new!
