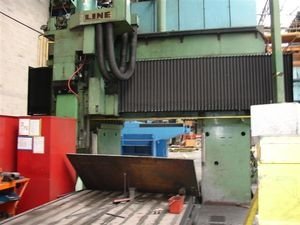

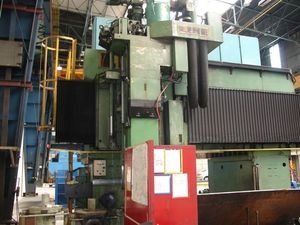

PLANER TYPE MILLING MACHINE
LINE SL 225 TF
Spindle motor power: 75 Kw
Spindle speed range: 10 -700 r/min
Worktable size: 2300*4000 mm
travel of X-axis: 4800 mm
ravel of Y-axis: 3200 mm
travel of Z-axis: 1200 mm
travel of W-axis: 1000 mm
rapid travel of X axis: 6000 mm/min
rapid travel of Y axis: 6000 mm/min
rapid travel of Z axis: 3000 mm/min
cutting feed speed range of X,Y,Z axis: 1600 mm/min
Weight of machine: 105000 kg
Max. workpiece weight: 40000 kg
YOM: 1981
CNS system: Num 760
VERTICAL MILLING HEAD- motor power: 45 Kw
Max. speed: 700r/min
VERTICAL MILLING HEAD motor power: 11 Kw
Extension of spindle( cone ISO 60): Ø 300
length: 400 mm
speed multiplier of head- max. speed: 2300 r/min
ratio: 3.35
