travels X-Y-Z 16.000 x ca. 5.000 x 2.450 mm
table size (one table)3.000 x 7.500 mm
2 piece tables
coupled table size 3.000 x 15.700 mm
max. table load each table 150 to
max. distance between table – spindle flange 2.750 mm
min. distance between table – spindle flange 300 mm
distance between columns (horizontal)3.250 mm
tool taper SK 60
spindle speed (2 gear steps)6-199, 199-600 min-1
power spindle 90 kW
quill Ø 320 mm
adjustment pinole 400 mm
dimensions l x w x h 34 x 10 x 6 m
weight 250 t

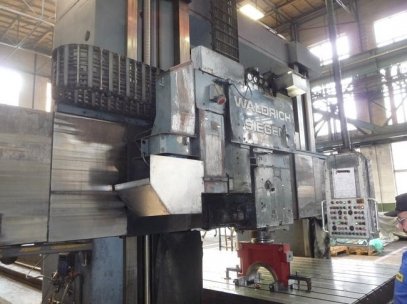

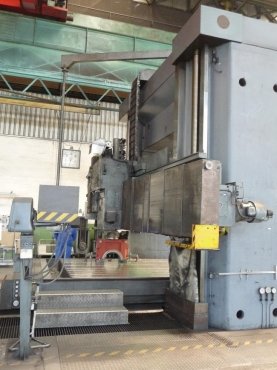

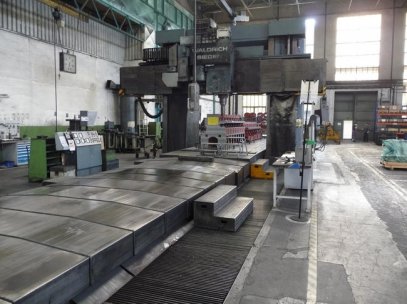

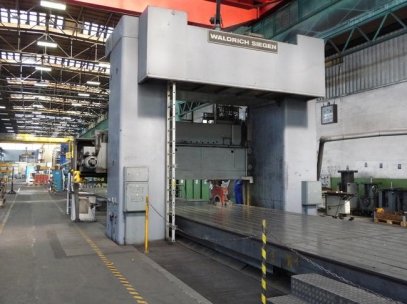

hydrostatic guideways for tables, 2 automatic coupled tables – each 3.000 x 7.500 mm, moveable crossrail, milling unit on crossrail, manual changeable milling heads with electrical clamping device, ca. 10 piece div. milling heads, DRO, chip conveyor, machine is in excellent condition.

-
