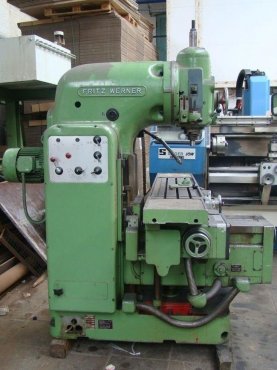

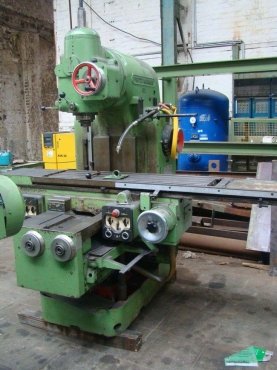

offered here is a vertical - milling machine manufacturer Fritz Werner FV type 2D.

milling Machine

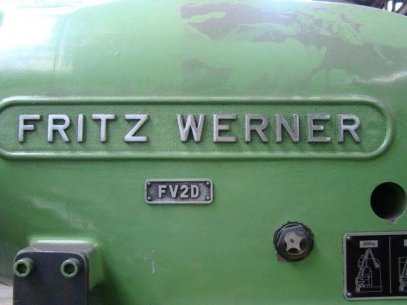

Make Fritz Werner
Type FV 2D

Overall dimensions of the operator panel control
Width: 2200mm
Depth: 2120mm
Height: 2160mm

Weight: 3700kg

Specifications

Control: conventional

workspace
X-axis: 1000mm
Y axis: 320mm
Z axis: 425mm

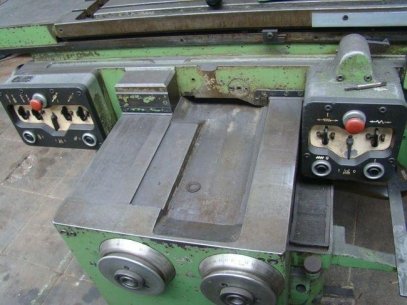

worktable
Clamping length x width: 1350 mm x 355 mm

drive
Main drive: 5,5 kW
Speed: 35.5 to 1800 min  ¹
Tool: SK 50

feed
Feed rate (X / Y): 16 - 500 mm / min
Feed (Z): 5 - 200 mm / min
Rapid traverse (X / Y): 4000 mm / min
Rapid traverse (Z): 800 mm / min


Operating voltage: 400V / 50Hz

Power consumption: 10 kW

-
