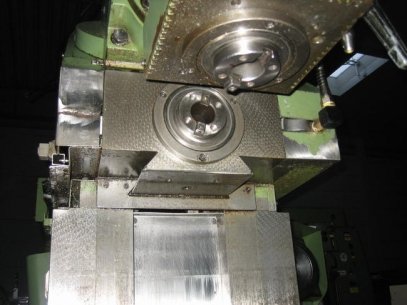

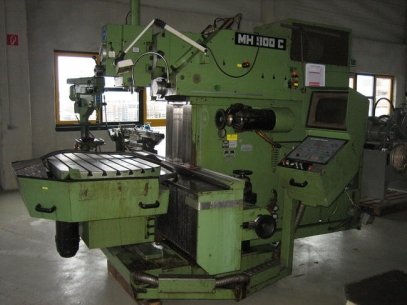

Maho MH 900 C Universal werkzeugfräs and drill (swivel head) Technical data adjustment of the Kreutz support longitudinal axis X 1000mm vertical ash Y 500mm adjustable headstock Qürasche Z 650mm spindles twin spindle horizontal / vertical foot switch tool spanner loosen / tighten Werzeugaufnahme ISO 40 (50) a quill 100mm speeds feed spindle 40-2000 1/min in the ashes x, y, z mm / min rapid traverse 5-2000 x In the axes, y, z mm / min and resolution of CNC Linear Encoders 0.001 mm measured value display screen one after the number of controlled axes 4 Number of simultaneously controlled axes 3 CNC rotary table clamping area 1100 x 700 mm centering bore 42 H7 Number of T grooves 7 distance of D 90 mm rotary motion in the B-axis minutes by Giechstrommotor as 4.Achsen of the Take Control Angle head 360 degree swivel its vertical axis high speed milling spindle inclusion in the work of the machine spindle ISO 40 spindle taper ISO 30 internal translation of the planetary gear speed range 1:4 r / min 160-8000
