Table size 1400x400 mm
Spindle speed 40-1800 U / min
Travel along (x) 800 mm
Positioning range (y) 400 mm
Travel (z) 500 mm
Milling head height adjustment 150-650 mm
Tool taper SK 50
Quill stroke 105 mm
Rapid traverse X, Y, Z axis min 1670 mm /

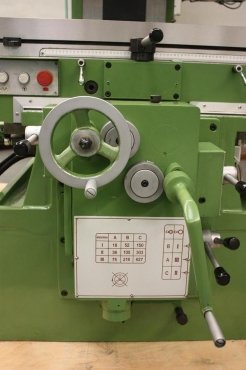

Feed rate X, Y, Z axis 18 - 627 mm min /
Head swivel range + / - 30 °
Distance spindle nose to table 150-650 mm
3x18x100 mm T-slot
Depth 510 mm
Main drive motor power 7.5 kW
Z-axis drive motor power 0.75kW
0.75 kW motor power feed
Coolant pump motor power 0,04 kW
Flow rate coolant pump 12 l / min
Weight 3660 kg
Dimensions 2290 x 1770 x 2120 mm
Accessories ISO 50 collet chuck, ISO 50 Reducing MK4, MK3, and MK2, arbor 40 mm, 160 mm vise, coolant system, 3-axis digital measuring system assembled
equipment
very high load on table
left / right 30 ° swivel milling head

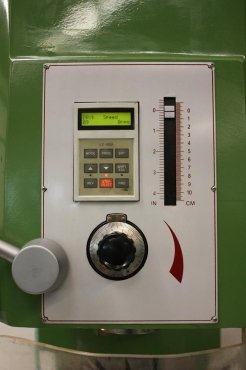

infinitely variable speed control
Guideways for maximum stability at high depth of cut
hardened and ground guideways adjustable
Large-sized quill
Quill with Hand
solid box beam construction
optimal spindle speed with high torque
standard spindle brake
Central lubrication
3-axis DRO

-
