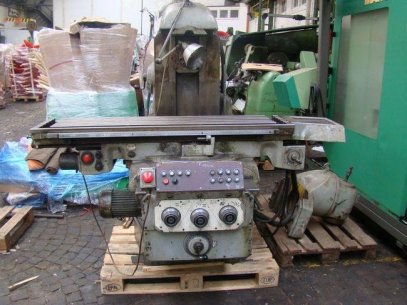

Engine type milling machine
Producer: WMW Heckert
Type : FU 400V

Dimensions
Width: 2200mm
Depth: 2500mm
Height: 2000mm

Weight: 3900kg

Technical data

Control: Conventional

Workspace
X-axis: 1120mm
Y-axis: 355mm
Z-axis: 400mm

Worktable
Clamping length x width: 1600 mm x 400 mm
Number of grooves: 5
Max.Werkstueckgewicht: 1500kg

Drive
Main drive: 13.5 kW
Speed​​: 28-1400 rpm  ¹
Tool fixture: SK 50

Feed
Feed (X / Y): 16 - 800 mm / min
Feed (Z): 5 - 250 mm / min
Rapid traverse (X / Y): 3150 mm / min
Rapid traverse (Z): 1000 mm / min


Operating voltage: 400V / 50Hz

Power consumption: 13.5 kW

-
