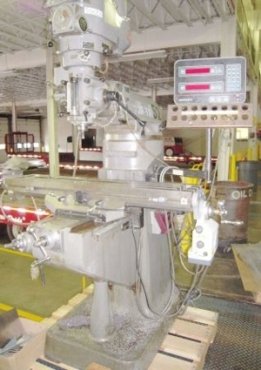

ALLIANT VERTICAL MILL
PRICE: Loaded on Truck Morrisville, PA Warehouse …… $3,950.00
Stock # 10096-P
Serial # 70110301 Model # 42S

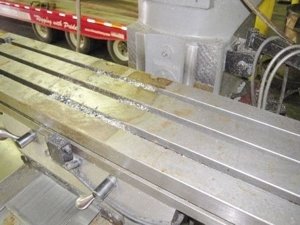

Table Size: 9" x 42" with (3) T-Slots
Longitudinal Travel, Manual (X Axis): 28"
Saddle Cross Travel (Y Axis): 12"
Vertical Knee Travel (Z Axis): 16"
Quill Travel: 5"
Quill Power Feeds: .0015, .003", 006" Per Revolution
Ram Travel: 12"
Ram Turret Rotation: 360 Degrees
Spindle Taper: R8
Variable Spindle Speeds: 60 to 4500 RPM
EQUIPPED WITH:

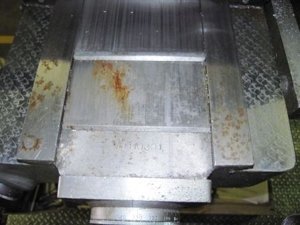

Chrome Knee Ways in Good Condition
Quill Lever Type and Round Wheel Handles
NO Knee Crank Handle
Bijur One Shot Lubrication System

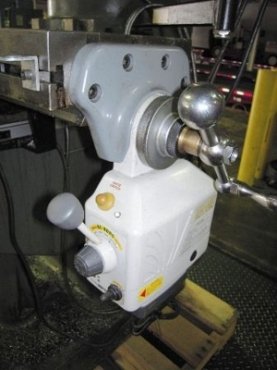

Workhorse AL-400S (Servo Type Power Feed with Rapid (110 Volt)

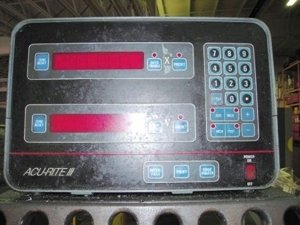

2-Axis AccuRite III Digital Readout
Overall Size: 58" L-R x 50" F-B x 83" H x 2,250 Lb.
