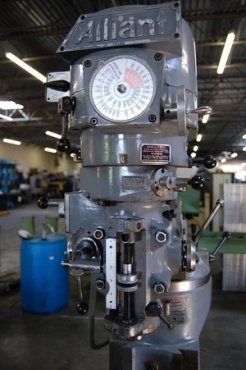

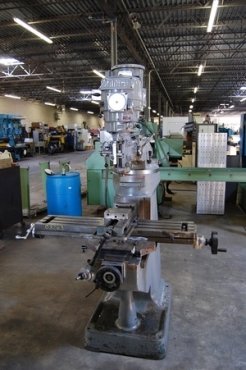

ALLIANT VERTICAL MILL
Loaded on Truck, Our Warehouse, York, PA

Stock # 08263
Serial # 73104845 New 12/1985 Model # 42VC

Table Size: 9" x 42"
Table Travel: 30"
Saddle Travel: 12"
Knee Travel: 13" (Manual - Missing Knee Crank Handle)
Quill Travel: 5"
Maximum Distance Table to Spindle: 18"
Variable Spindle Speeds: 60 to 4500 RPM (Manual Change)
Spindle Taper: R8
Head Tilts: 45 Degrees Front & Back, 90 Degrees Left & Right

EQUIPPED WITH:
Machine Parts & Operation Manual
One Shot Central Lubrication System
Hard Chrome Knee Ways in Very Good Condition
Lever Type Quill Handle
Graduated Dials on All Axises and Table Each End
X and Y Axises are Ball Screws
6" Machine Vise
(12) Assorted R8 Collects
2 HP Motor, Wired 3 Phase, 60 Cycle, 220-440 Volts
Presently Wired for 220 Volts
Overall Machine Size: 58" L-R x 65" F-B x 80" H

Note: The machine at one time had a Trax System on it. It was not operational so it was removed and turned back into a manual machine.
