BRIDGEPORT SERIES I 3-AXIS CNC VERTICAL KNEE MILL
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $12,500.00
Stock # 12025
Serial # XT793 New 1995 Model # V2XT

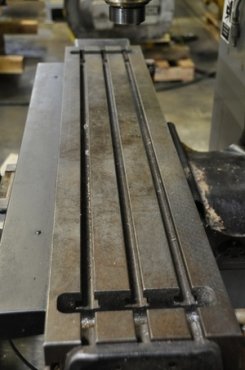

Table: 9" x 48" with (3) T-Slots
X Axis Travel: 30"
Y Axis Travel: 12"
Knee Travel: 14-1/2"
(Z) Quill Travel: 5"
Spindle Nose to Table: 3-1/4" Min. to 17-3/4" Max.
Spindle Center to Face of Column: 6-3/4" Min. to 18-3/4" Max.
Max. Table Load: 300 Lbs.
Ram Travel: 12"
Head Tilt: 90 Degrees Left & Right
Variable Spindle Speeds: 60 to 4200 RPM via Hi/Low Range
Spindle Taper: #30 Quick Change
Feed Rate: .1 to 250 IPM (All Axes)
Positioning Job: 150 IPM
Rapid: 250 IPM
EQUIPPED WITH:
Bridgeport DX-32 Control

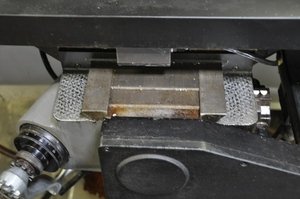

Chrome Plated Knee Ways in Excellent Condition
Color Screen & Keyboard
Bijur Lube System
Power Draw Bar
Air Activated Spindle Speed Changer
Assorted Tool Holders
Manuals
2 HP Main Motor, Wired for 3 Phase, 60 Cycle
Overall Size: 72" L-R x 60" F-B x 92" H x 3,000 Lbs.
