Heidenhain 2 Axis Digital Readout, Servo 140 X Axis Power Feed, Kurt Power Drawbar, Hardened and Ground Dovetail Ways

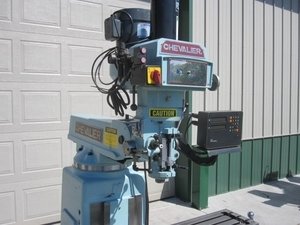

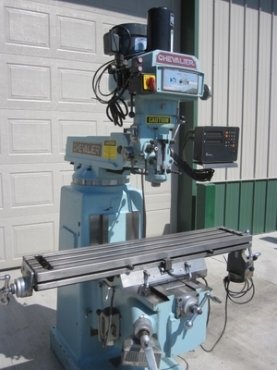

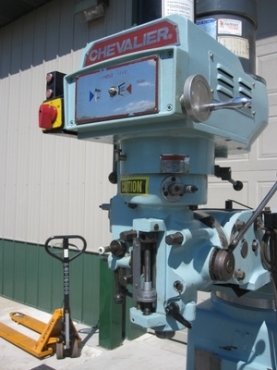

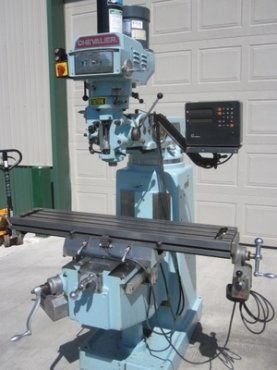

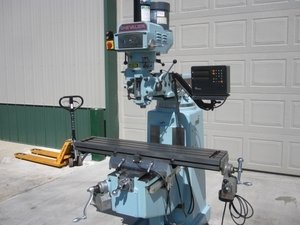

MILLING MACHINE
Make: Chevalier S/N: 820260 (1993)
Model: FM-3VK Condition: Very Good

SPECIFICATIONS
Table Size 10” x 50”
X Axis Travel 31.0”
Y Axis Travel 15.0”
Quill Travel 5.0”
Spindle Horsepower 3.0 Hp
Spindle RPM (Vari-Speed) 60-4,200 RPM
Spindle Taper R-8
Machine Weight 3,100 lbs.
Voltage: 440/3/60

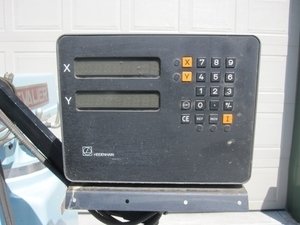

INCLUDES: Heidenhain 2 Axis Digital Readout, Servo 140 X Axis Power Feed, Kurt Power Drawbar,
Hardened and Ground Dovetail Ways

PRICE $ 6,950.00

Terms: Full payment prior to shipping
Warranty: 30-day return privilege
F.O.B. Dousman, WI

72" x 65" x 86"

3000 Lbs
