Technical details:
Wheel diameter - max: 170/190 mm.
Tread width mm
Module - max: 6.
Module - Min: 1.

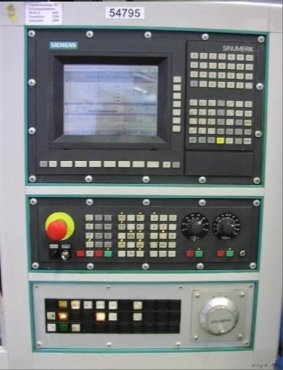

Control: Siemens 840 C
9 kW total power requirement
Machine weight approx 8.5 tonnes
Space requirement: 2875x2100x2670 m

Additional Information:
Werkstueckdurchmesser max: 170/190 mm
Radial path max: 160 mm
maximum axial travel: 400 mm
max Tangetiallweg: 240 mm
Milling head swivel angle: + / - 45 degrees
Hob max. Diameter: 175 mm
Hob max. Length: 300 mm
Workpiece diameter: 170 mm
Workpiece bore diameter / depth: 100 mm H6/492, 56/520 mm
Diameter of the wheel: 219 mm
Distance between the cutters and Wekstueckachse min / max: 20 mm / 180 mm
Distance between the cutters, and texture of the Wekstueckachse min / max: 140 mm / 590 mm
Retainer hole diameter: 60 mm H6

-
