Description:
2 Axis MILLPWR CNC Control, .0001" Glass Scales, Power Drawbar, Knee Feed, Auto Lube, Square Box Ways
Specifications:

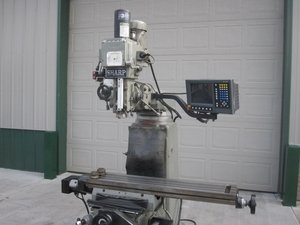

USED 2 AXIS CNC VERTICAL MILL
Make: Sharp S/N: 800100610 (1991)
Model: TMV Condition: Reconditioned
SPECIFICATIONS

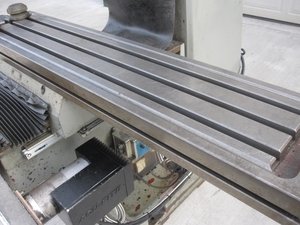

Table Size 10.0” x 50.0”
X Axis Travel 32.0”
Y Axis Travel 16.0”
Quill Travel 5.0”
Spindle Horsepower 5 Hp
Spindle RPM (Vari-Speed) 60-4,200 RPM
Spindle Taper NMTBA 40

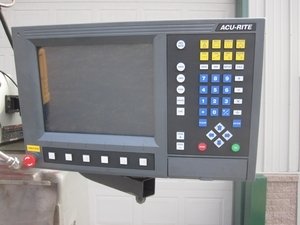

CNC Control Model Acu-Rite MillPWR (Color)
Number of CNC Axis 2
Voltage 220/3/60
Floor Space Required 75” x 75” x 96”
Machine Weight 4,000 lbs.
INCLUDES: Acu-Rite Millpwr CNC Control, .0001” X-Y Glass Scale Feedback, Z Axis Glass Scale,
Kurt Power Drawbar, Servo Knee Power Feed, Automatic Way Lube, Square Box Ways w/ Turcite,
3.5” Floppy Disk Drive, RS232, Graphic Conversational Programming, Way Covers

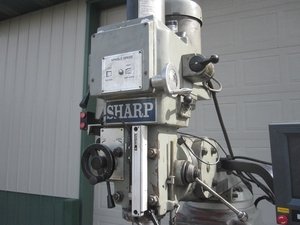

NOTE: Machine Control, Glass Scales and Milling Head have been reconditioned by AMT Service Dept.
PRICE $ 12,500.00
Terms: Full payment prior to shipping
Warranty: 30-day return privilege
F.O.B. Dousman, WI
Dimensions:
75" x 75" x 96"
Weight:
4,000 lbs
