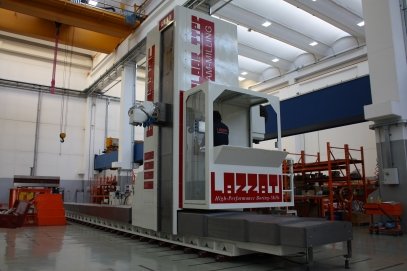

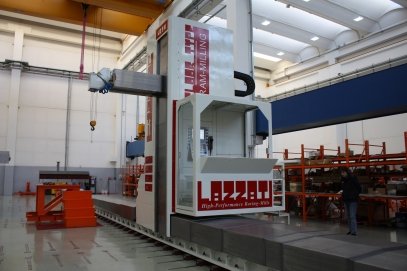

FAST HEAVY VERSATILE PRECISE Floor-Type Milling-Borer with Full Hydrostatic Guideways.
This machine allows high powerful and precise machining combined with a top availability.
Specifications:

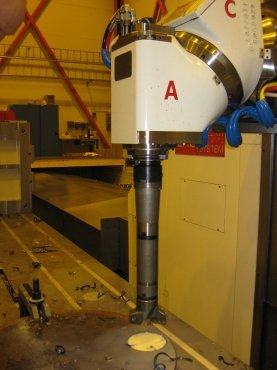

A UA 360 "GradoGrado" - Automatic Universal Head 1°x1°
2 bodies 45° index 1°x1°
60Kw - RPM4.500 - 850Nm
Spindle Taper ISO50-Big Plus
Headstock Vertical Y=2.100 up to 4.100mm
Column Cross X=4.000 up to 40.000mm
Ram Longitudinal Z=1.250 or 1.500mm
High Pressure Coolant 35Bar Internal/External
O RT3D - Management of the Head in the space 3D
CNC Heidenhain, Siemens, Fanuc, Fagor
Available Options:
TC 60/120 - On Board Tool Changer 60 or 120tools
TR 15 - Rotary Travelling Table B=1.800x2.200 15Ton W=1.500mm
TR 30 - Rotary Travelling Table B=2.000x3.000 30Ton W=2.000mm
F - Fixed Floor Plates 15Ton/mq dimension upon request
O CM - LAZZATI Collision Monitoring System
O SP - Workpiece Probe
O SU - Tool Probe
J F - Chip Conveyor
