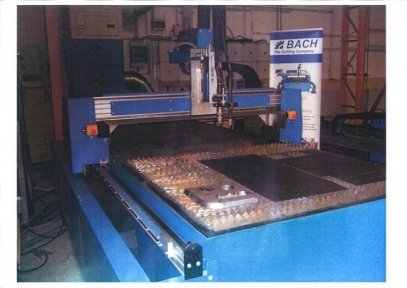

Working width: 1500 mm Overall width of the machine: 2300 mm Overall height of machine: 1800 mm standard track length: 4000 mm resulting working length: 3000 mm Cutting speed: 0 - 12000 mm / min rapid traverse speed: 25000 mm / min Cutting Thickness (max. 25 mm) according to selected Plasmaschneidqülle number the burner 1 Supply voltage / Netzfreqünz: myBach 230 V / 50 Hz Power without Plasmaqülle 1.4 kVA CNC control software cncCUT-Basic in myBach control 2D programming system include for all cutting processes residual disk boxes grid nesting and cutting Integrated disk storage Automatic placement of the lead-ins sorting and the cutting sequence and correction Import DXF geometry creation by optimizing parameterized macros, create your own HTML macros auto technology stocks. the material and thickness of storage and editing of NC programs Automatic simulation and time calculation including cncCUT postprocessor arc dependent torch height control IHT 3000 cutting table working area 1,500 x 3,000 x 700 mm with a stable flat iron support for the material, among them a number (optional) gratings to trap small parts Integrated suction channels with internal flaps and automatic roll-over valves Klappensteürung smoke and dust is sucked through individual sections, which opened on the basis of the focal position of the head and valves via roller [...Technical data truncated]
