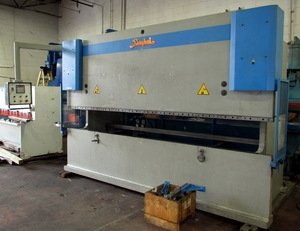

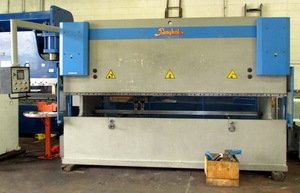

200 ton x 12' Baykal Hydraulic , 2 Axis CNC Backgage, flush floor mount, 1999
Specifications:
Baykal 200 Ton x 144" Down Acting Hydraulic Press Brake
Model: 3708/180
S/N: 4095
Year: 1999
Condition: Good
Specifications:
Capacity 200 Ton
Bed Length 145"
Distance Between Housing 10'7"
Stroke 8.67" (220mm)
Throat 10.6"
Speeds 236 IPM Approach
21 IPM Press
212 IPM Return
Motor 20 HP (17kw)
Dimensions 3900mm x 1650mm x 2400mm High
Weight 28000 lb
Equipped With:
Programmable 2 Axis Back Gauge XY
Upper Die Clamps
4 way bottom die.
Remote Hand and Foot Control Station w/E Stop
