CC-14
CC-14

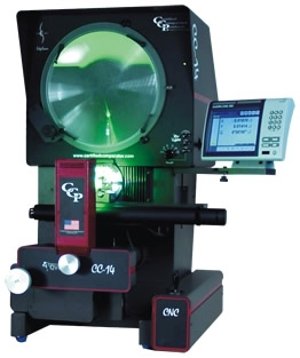

Get TruLight™ all-LED illumination with variable intensities on the CC-14 benchtop optical comparator. With ergonomic controls at your fingertips, you can complete your applications fatigue free.
Configure a CC-14 to your application with a range of features and options:
* 14" diameter viewing area
* Rigid, all-steel heavy duty cast aluminum worktable
* Telecentric projection lenses from 10x - 100x magnification
* Keep lenses safe and ready for use with the 3 position internal lens turret
* Bright green LED profile light (standard)
* Optional oblique, TruLight Ringlight with variable intensity
* Optional TruLight TTL surface light with variable intensity
* Optional eCAD™ electronic overlay package
* Optional EdgeScan™ automatic edge detection for accurate edge measurements
* Optional ImageCapture™

Optical
Mechanical
Illumination (TruLight™)
Electronics
Optional Software Packages
Power Requirements
XY Scale Resolution
Options
Warranty
Screen Size 14” diameter screen, with integral hood
Screen Type Ground glass with 90° centerlines and clips for mounting standard 14” overlay
charts
Protractor Digital screen display, ±360° readout with 1’ (0.017°) resolution
Optical System Telecentric, horizontal, with upright corrected image, 3.5” constant working
clearance
Optional Lenses 10X, 20X, 31.25X, 50X, 100X
Lens Turret Three position, manual, internal, with magnification display
Throat Clearance 9.8”
XY Motion Manual, with quick release X axis and fine adjustment knobs in X and Y
Optional XY Motion Motorized, with variable speed joystick
XY Travel 8” x 5”; focus travel - 1.5” with precision fine adjustment
Optional Travel Extended X axis travel - 12”
XY Positioning Precision, with heavy duty substage for vertical motion and focus control
Worktable Hardcoat anodized aluminum with fixturing slot, 17.70” x 4.75”, 45 lb load
capacity
Helix Motion ±6° with pivoting worktable assembly and zero stop
System Dimensions, (approx DWH) Manual systems, 40.1” x 18.25” (32.1” with DRO) x 41”
Motorized systems 40.1” x 22.75” (32.1” with DRO) x 41”
Weight, approximate Manual, 315 lb; Motorized, 335 lb
1. Profile light, bright green LED, continuously variable intensity
Optional Illumination 2. Oblique (Dark Field), Ringlight with 8 white LEDs, 6 switch-selectable patterns
for effective directional lighting; continuously variable intensity
3. TTL surface, white brightfield, LED coaxial internal, continuously variable
Quadra-Chek QC-100 or EL 500 fully geometric graphical DRO (std.)
Optional Electronics Quadra-Chek QC-200, QC-300
MeasureFit Plus (requires separate computer);
SmartReport with real-time statistics (requires separate computer);
Quadra-Chek QC Wedge (requires separate computer and Microsoft Excel™);
eCAD™ for electronic CAD overlay & virtual chart system (requires separate
computer)
115 VAC, 50/60 Hz, 1
0.00004”
Adjustable direct projection iris
Digital video screen image capture
External optical edge detection
EdgeScan™ internal automatic edge detection (requires QC-200 or QC-300 DRO)
Fixtures and calibration accessories
Fresnel lens
Glass and plastic overlay charts
Heavy duty steel weldment stand
Service and support contracts
Full on-site warranty for 1 year. Parts only warranty for second year

Manual, 315 lb; Motorized, 335 lb
