Specifications / Technical Data S-1400/T
CNC-Router and CNC-Engraver / Engraving Machine

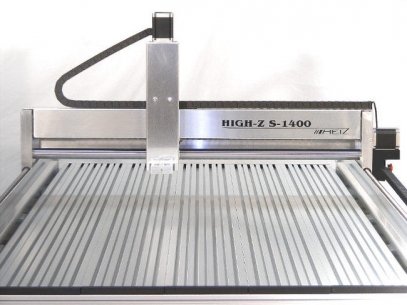

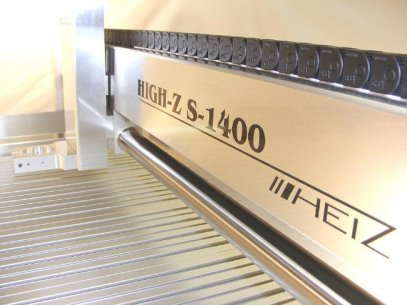

(Attention: Pictures are showing the type with trapezium spindles, thats the only different to the t-series )
With the purchase of the T-variation of High-Z CNC-router you get a proven technology with a certain icing of the cake. High-Z/T cnc-routers are conceived for once more precision (repetition precision approx. 0,02mm) and especially for higher traverse speed.
Because of the used ball screws the High-Z/T cnc-machines achieves a fantastic precision and an almost unmeasurable back lash of approx. 0,01mm. At the same time there are high traverse speeds up to approx. 108mm / sec. ( 6.500 mm/min ) possible.
With this 3D-cnc-machine you’re able to carry out an engrave and mill speeds of approx. 4500 mm/min. and express travels up to 6500mm/min.
Here's a video on a unloaded drive with the new High-Z / T.
This 3D-cnc-milling machine series is usable in the industrial field as well as for works like engraving, milling, drilling, measuring, cutting and measuring out systems as for example adhering of adhesive on 3D outlines.
With the S-1400 cnc-routers you are able to mill in almost all materials. Additional linear rail ways from HIWIN at X-axis are making the machine extreme stable. With the two trapezium nuts at X and y axis you are able to adjust backlash too.
High quality components and a optional underframe leave none wishes open. So you are able to do that too: Milling in a big metall sheet cabinet. Work further like a professional and arrange a demonstration today in our house.
All cnc-machines are being delivered with black energy-chains on all axis, which allows a better cabling management. Also, all machines are equipped with an emergency stop button. An additional emergency stop you find in front of the controller.
Basic equipment of all High-Z CNC-milling machines:
Software ConstruCAM-3D ( from S-720 and S-400/T ) included !!
Contact free reference switch and emergency stop button as well as 22mm thick linear guide ways and individually adapted screw nuts !!
Equipment / Productdetails:
•Drive : 4 stepping motor by Nanotec with 1600 steps/rev (1/8 Step)
•2 motors for constant tension and compression during milling operation on X-Axis
•Guide ways X 22mm and Y axle 30 mm / Z Axis 16mm, grinded and with 61hrc hardened surface
•Feed through of long workpieces possible, because there’s no belt drive at the end of the X-axle
•Additional linear guide rails 15mm from HIWIN for the X Axis
•Ball bearings at both sides of ball screws on X and Y axis
•Traverse speed of rapid feed: max. 7000 mm/min
•Technical resolution : 0,0079375 mm ( 1/8 Schritt )
•Reversal error max.: +/- 10µm ( 0,01mm )
•Table size / clamping area: 1730 x 880 mm
•Traverse Paths: X=1400 mm; Y=780 mm; Z= 110 mm
•Reference- and limit switch on all axes
•Double safety emergency stop button
•Energy chain for clean cabling
•Total dinemsions incl motors: L x W x H = appr. 1750 x 1040 x 500mm

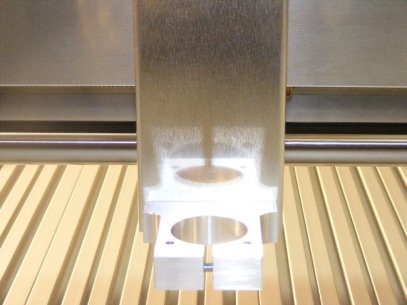

•Milling Motor anchorage: Euroneck Ø43mm
•incl. Software PC-NC or WIN PCNC Light
•incl. Software ConstruCAM-3D ( recommended sell price 1902.81 EUR)
•Modular frame for universal application ( shown underframe optional, 980 Euro incl VAT )
•Weight appr. 76 kg
•Complete machine with Included 4 driver microstep controller 4x 2.1 Ampere, T-Groove plate and Kress milling motor 1050 Watt incl. 8mm collet
•An approx. 30-minute long introduction during pick up and an unlimted telephone support are included.
•An approx. 2-3 hours long introduction and an installation of software on your brought note book/ PC as well as a explanation of fundamental terms of Corel Draw etc. possible, too.
Technical data of included microstep controller:
•4-channel control
•Power up to 4 x 2.4 A
•Micro pacing 1/8-Step / 1600 steps / rev.
•4 ports for 4 stepper motors
•Connection to parallel port or in USB WIN PCNC Economy to USB port
•"Sleep function" for power reduction in standby
•Protect against high voltage spikes
•E-stop button, 2-way secured
•Control of 2 power-consumers up to 1200 watts via software switchable (from WIN PCNC Economy), 230 V, 8A
•Power Supply Relay / Cooling
•Aluminum heatsink / 2 active fans 60 & 40mm
•Ability to connect a total of 5 end-and reference switches / stop button
•Connection ports of motors and control line through D-sub 9-pin.
