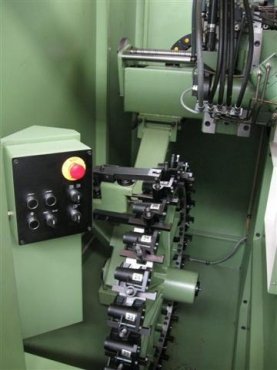

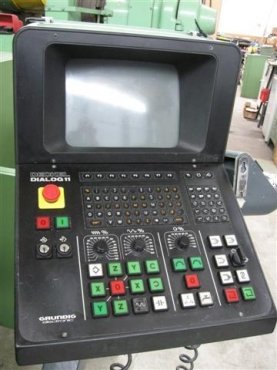

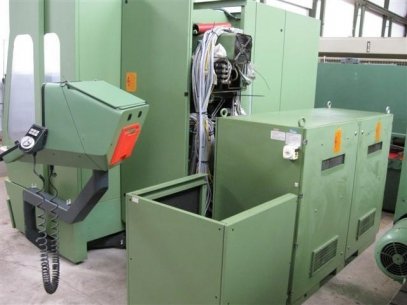

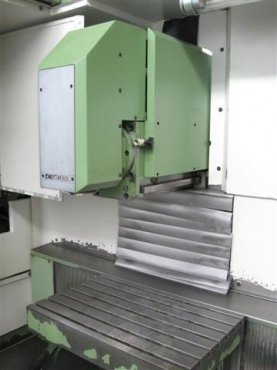

Ways x/y/z: 400 x 400 x 500 mm, drive asynchronous-engine: 6 kW, turning speed programmable: 18-6300 U/min., x-axis + y-axis: 9 Nm, z-axis: 21 Nm, feed range stepless programmable, range: 2-10.000 mm/min., directly way measuring all axis: 0,001 mm, tool taper: SK 40, for tool shafts DIN 69871-A, for fixing bolts DIN 69872-A, tool changer for 26 tools, tool clamping automatic mech./hydr., tool diameter: max. 100 mm, near free neigbor places: 160 mm, weight of tools max.: 10 kg, table load max.: 750 kg, weight of the complete unit with cupboard: 4850 + 460 kg, space requirements with safe region: 4,5 x 5,8 m, dimensions of the machine ca.: 3,3 x 2,4 x 2,3 m. Electric in sep. switchgear cabinet 380 Volt. With full-cabin, Control: Dialog 11, electr. handwheel, cutting point, fixed working table, working-head and cooling equipment.


Member of the association of German machine tools dealers FDM and machine dealer with own stock of 2500 m².

-
