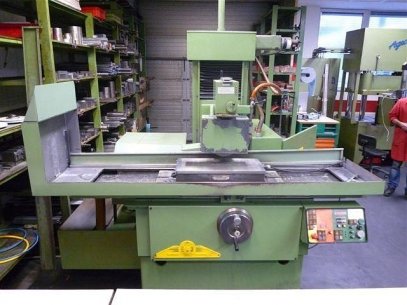

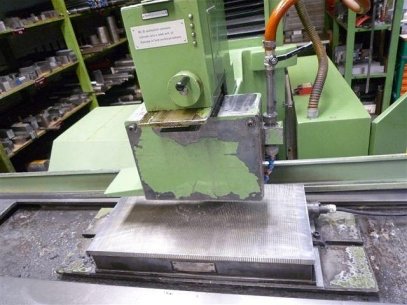

WORK AREA SURFACE GRINDING Grinding length (max) 650 mm grinding width (max) 275 mm workpiece - height (max) 375 mm TABLE-SURFACE GRINDING-clamping surface (left-right) 900 mm clamping surface (front-back) 250 mm workpiece weight (max) 280 kg Magnetic plate yes Magnetic plate width 600 mm magnetic disk depth 300 mm SCHLEIFKOeRPER diameter (max) 300 mm Bore: 76 mm diameter 50 mm wide axle drives GRINDING feed along of 1 mm / min feed along to 30000 mm / min ELECTRICAL SPECIFICATIONS Power (Total) 9 kW DIMENSIONS / WEIGHTS footprint length 2200 mm Overall width 1850 mm footprint height 2550 mm Total weight kg 3500
