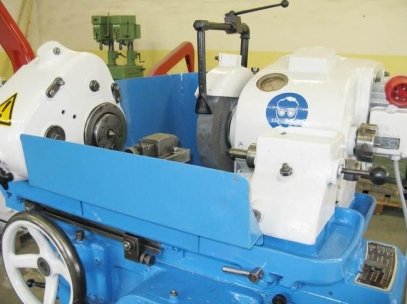

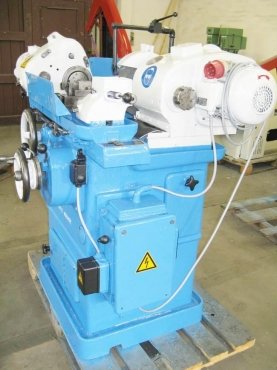

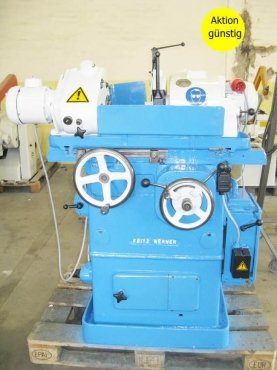

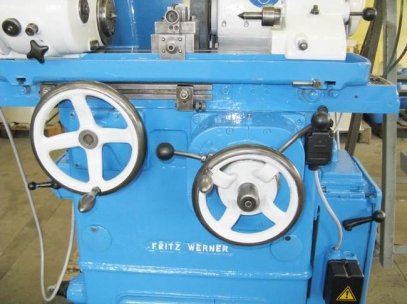

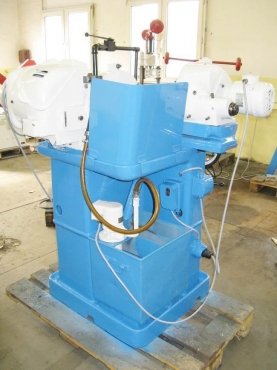

--- We can give away anything, but sell low, we do that! Please convince yourself that this price is cheap! 1 used. Grinding Machine Make: Fritz Werner Type: 270 A mach. 159,033 Year: / 2012 TÃP. Comm Number: 399221/009 Specifications: Center height: 75 mm voice -: 150 mm length: 350 mm Wheel Diameter: 300 mm Maximum width of a full wheel in plunge: 40 mm Maximum overall width of a wheel set: 60mm Largest sum of the widths : 40 mm grinding wheel revolution: 2,250 r / min grinding head Largest Schleifkopfhub: 180 mm Max stroke over handwheel: 180 mm feeding at a handwheel: 1.0 mm Feed with a handwheel - tick: workpiece speeds, adjustable: 0,005 mm workpiece spindle head 30-750U / min spindle taper or inner cone of the workpiece spindle: MT 2 Tailstock: inner cone of the quill: MT2 Spindle stroke: 30 mm Table: Largest table tilt: 10/12 Largest cone angle: 24 Table speeds, adjustable: 0.1 - 6.0 m / min. Power consumption: 3.5 kW Weight: 1,200 kg Footprint: B 1.10 x D 1.00 x H 1.30 m machine color: blue / gray with white, the machine is equipped with: * Manual or automatic operation * top table for taper grinding * 3 - B . - grinding chuck 100 mm, with inner and outer jaws (unused) * ER collet chucks 32 with collet set 18 pcs. By [...Technical data truncated]
