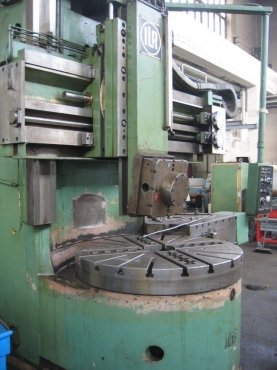

WORKING RANGE TURNING
swing diameter (max) ( 59.1 " ) 1500 mm
workpiece length (max) ( 49.25 " ) 1250 mm

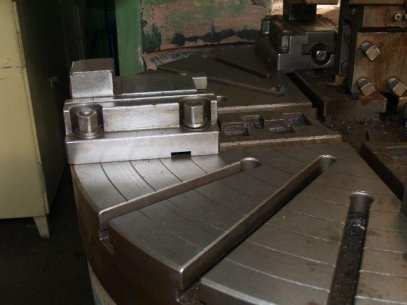

FACING PLATE (TURNING MACHINE)
diameter of surface plate ( 49.25 " ) 1250 mm
spindle revolutions (min) 25 /min
spindle revolutions (max) 250 /min
drive power (max) (60.345 hp ) 45 kW

CROSS BEAM SLIDE
z-axis traverse ( 29.55 " ) 750 mm
x-axis traverse (36.248 " ) 920 mm
traverse velocity z (min) (0.1241 "/min) 3.15 mm/min
traverse velocity z (max) (12.411 "/min) 315 mm/min
traverse velocity x (min) (0.1241 "/min) 3.15 mm/min
traverse velocity x (max) (12.411 "/min) 315 mm/min
tool fixture Turret
tool fixture 4

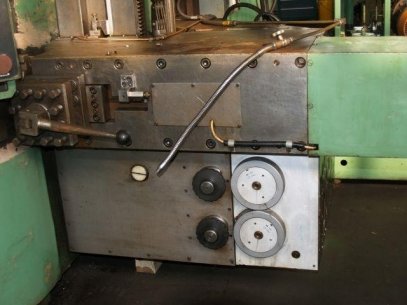

COLUMN SLIDE
z-axis traverse ( 31.52 " ) 800 mm
x-axis traverse ( 23.64 " ) 600 mm

DIMENSIONS / WEIGHTS
space requirements length (106.97 " ) 2715 mm
space requirements width (116.62 " ) 2960 mm
total height ( 157.6 " ) 4000 mm
total weight approx. ( 39029 lb ) 17700 kg

ADDITIONAL INFORMATIONS:
+ column slide
+ cross beam slide with taper attachment
+ conventional machine with automatic gearboxes.
+ All functions (gears, ...) can be selected via the control panel.

CONDITION:
> The machine was partially overhauled and can be inspected in running
condition.

PICTURES AND FEATURE VIDEO:
> Pictures and a feature video is requested and will follow shortly.

OPTION:
* The machine can be equipped against separate payment with:
- HEIDENHAIN digital readout in X and Z.

-
