EQUIPPED WITH:
Complete with:
(A) Convenient height vertical work spindle
(B) Canted Shoulder height operator's control panel

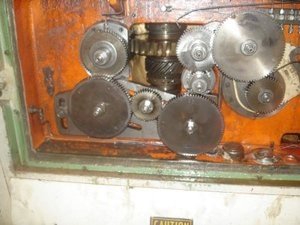

(C) Easily accessible change gear boxes
(D) Sliding splash guards
(E) Removable chip collection pan
(F) Simplified swivel angle setting graduated in minutes,
(G) Digitally selected 0.0001" increment automatic hob shift actuated by a reversible hydraulic motor
(H) Drawbar clamped interchangeable hob arbors,
(I) Troublefree continuous, fully protected high capacity, automatic lubrication system
(J) J.I.C. non-integral, removable hydraulic system mounted on the machine base
SPECIFICATIONS:
Max. Pitch Diameter 8 W/3" Hob
Max. Pitch Diameter 7 W/3" Hob
Max. Face Width 10"
Maximum Helix Angle 45 Degrees
Maximum Hob OD 4"
Maximum Hob Length 4"
Minimum Number of Teeth Cut 3
Maximum DP 4
Axial Travel 12"
Hob to Work Spindle Face Maximum 15-3/8"
Hob to Work Spindle Face Minimum 3-3/8"
Hob to Work Minimum 1/2"
Floor Space 76" x 64" x 96"
Height 79.5"
Approximate Weight 10,000 lbs
