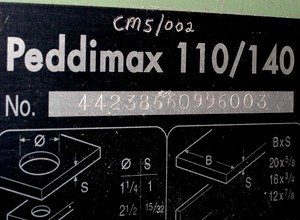

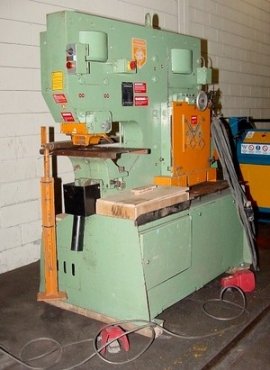

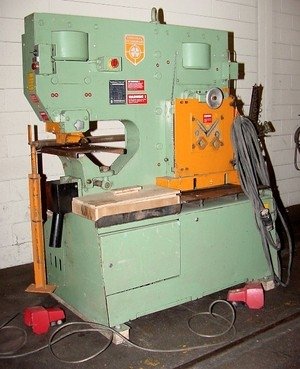

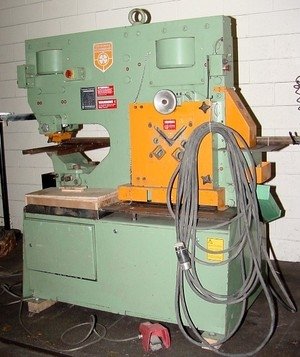

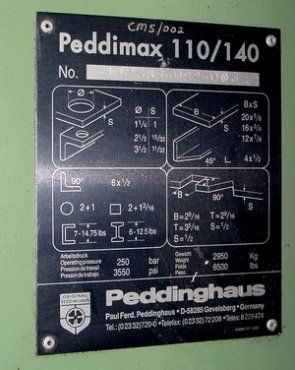

1996 Peddinghaus 110 Ton "Peddimax" Hydraulic Ironworker Model 110/140 S/N 44238660996003
SPECIFICATIONS:
Punch Unit:
Maximum punch capacity: 110 tons
Depth of Throat: 20"
Stroke, infinitely variable: 3/8" to 2"
Speed at 3/4" stroke: 22 SPM
Standard Punch diameter: 1-1/4"
Punch Capacity: 1-1/4" through 1"
Shear Section:
Flat Shear: 20" x 5/8", 16" x 3/4", 12" x 7/8", 4" x 1/2"
Angles at 45 Degrees: 5" x 5" x 3/8"
Angles at 90 Degrees: 6" x 6" x 1/2"
Blade Cut Length: 20-1/4"
Rounds: 2" & 1"
Squares: 3" & 1-3/16"
Speed at 3/4" Stroke: 20 SPM
Notching Section:
Square Notcher: 1/2"
Square Angle Notcher: 3" x 3/8"
Square Notch Width: 2-9/16"
Square Notch Depth: 3-5/16"
Triangular Plate Notcher: 1/2"
Triangular Angle Notcher: 3" x 3/8"
Triangular Notch Depth: 2-9/16"
EQUIPPED WITH:
4 Separate Workstations
Hydraulic Design with Infinitely Variable Stroke and Stroke Position Setting
Dual Remote Electric Foot Pedal Control of Each Side
Plug-in Support Table on Punch End with Adjustable Depth and Side Stops

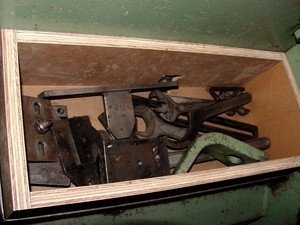

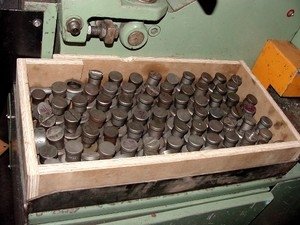

Quick-Change Punch Holder with Large Assortment of Punches and Dies
Dual Voltage (230-460) Electrics
Approximate Weight: 6,500 lbs
Approximate Dimensions: 77-1/4" L x 40-1/8" W x 81-1/4 H
