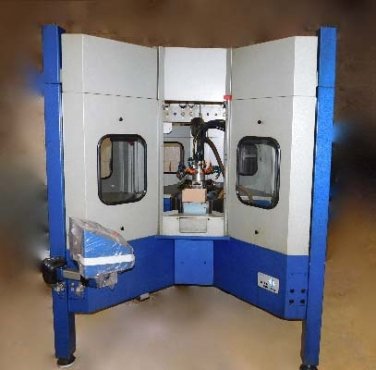

Machine with table Horizontal 8 Mandarins Stations
Horizontal hydraulic diameter 80 mm per axle.
basic machine with:

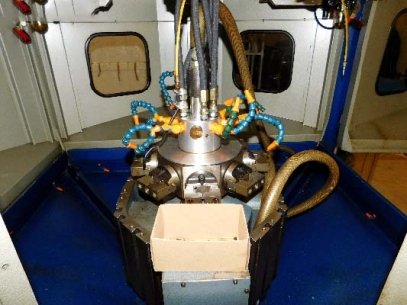

- Diameter 80 to the horizontal axis of the hydraulic spindle turret

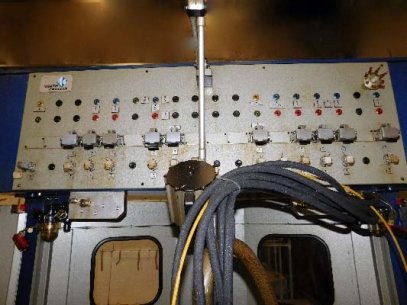

- Power Logic PLC and
air synchronization commands to 7 working units
a cylinder and two tapping units.
- 7 timings for the front control / rear units
- Cycle bimanual out
- Mobile with chip evacuation through the center
- Occulus door with security lock.
- Refrigerant
- 1 light
- Counter 1 cycle with reset
- Counter 1 cycle without reset
- 1 hour meter
- 2 instructions for use
1 adjustment bezel with 35/44/50/70 sleeves
- 1 for auto power outlet
extra time for the command:
- 1 automatic feeding robot
- 1 assisted manual loading (EN-BAR)
- 1 loop or L or U Square
- 2 cycles "moved forward"
- 1 cleaning cycle
ADDITIONAL EQUIPMENT:
- 1 rear improved EX drilling units 12-R
- 1 instance of complete vertical drilling EX 82
- 1 + 1 58002 53000 console support (to transform
Example 89 88 horizontal as vertical)
- 53504 3 cloves
- 2 55 522 carriers (to transform examples 5:06
Example 49)
- 1 for drilling units Ref 4200
- 1 exclusive units 42000 Ref 57302
