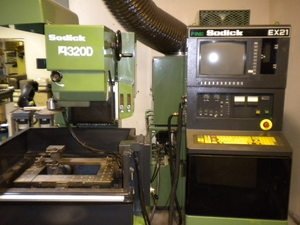

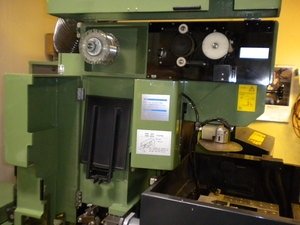

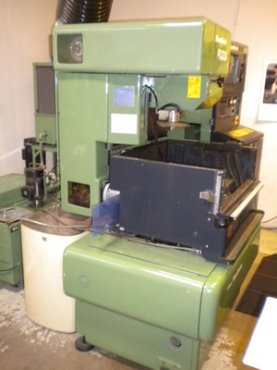

Includes "Short Arm" removable Z-axis extension device for additional 4" cutting height and dielectric chiller. Under power, in operation, immediately available.
Specifications:
SPECIFICATIONS:
PUNCHING:
RATED CAPACITY55 TON
THROAT DEPTH 7”
MAXIMUM PUNCH CAPACITY 1-1/16” DIA. IN 5/8” PLATE
OPEN HEIGHT 8-1/8”
SHUT HEIGHT6-7/8”
STROKE1-1/4”
BAR SHEAR:
ROUNDS/ SQUARES1-1/8”
FLAT MAXIMUM THICKNESS3/4” X 4”
FLAT MAXIMUM WIDTH1/2” X 12” OR 3/8” X 14”
ANGLE SHEAR: MAXIMUM SIZE4” X 4” X 1/4”
3" X 3" X 3/8"
CYCLE TIME (Approx.):1/2” X 2” SHEAR - 2 SEC.
HYDRAULIC SYSTEM:
RESERVOIR 7 GALLONS
2,600 PSI
MOTOR :3 HP (230v., 3PH.- std)
** ADD $ 300 for 1PH.**
DIMENSIONS:
BASE 41-1/2” X 40”
HEIGHT57”
WEIGHT2,250 LBS.
*** Catalog Photo - Machine is shown with "Optional" Coper Notcher
Per the Mfr. - Specifications Subject to Change without Notice
