bore capacity in steel (diameter) 30,35 mm
arm length 1000 mm
workpiece height max. 750 mm
spindle stroke 250 mm
spindle taper MK 3
spindle turning speed range 12, von 50-2350 U/min
feeds 4, von 0,13-0,54 mm/U
boring motor 1,5 kW
distance spindle/base plate 250-1000 mm
vertical adjustment of arm 525 mm
column diameter 240 mm
throat min. 300 mm
weight of the machine ca. 1,6 t
dimensions of the machine ca. 1,9 x 0,9 x 2,6 m
Electric 380 Volt
Cooling equipment

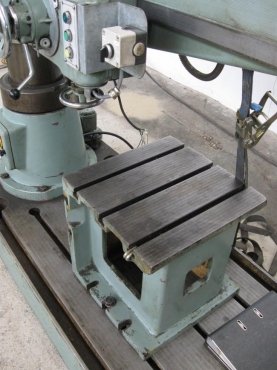

Cube table 450 x 450 x 450 mm
