turning diameter 180 mm
turning length 300 mm
control Sinumerik 3 T
turning diameter over bed slide 70
spindle turning speed - stepless 100-3000 U/min
rapid traverse: longitudinal/face 5 m/min
feeds 0,01 - 2,99 mm/U
spindle bore 23 mm
face slide travel 121 mm
tailstock quill taper MT 2
total power requirement 4 kW
weight of the machine ca. 600 kg
dimensions of the machine ca. 1,5 x 0,9 x 1,65 m
3 jaw chuck
Multifix-steel holder
Electric 380 Volt
Cooling equipment

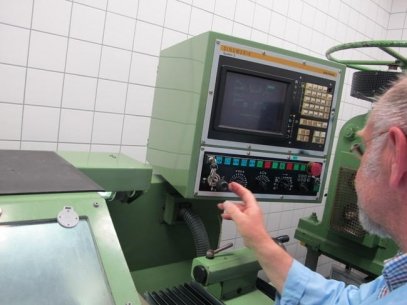

Machine is in top condition from department prototyping an establishment for electronics under power to the last - see video. 2-Axis contouring control / memory control Sinumerik 3 t, manual mode, manual input, single step, corollary, electronic handwheel.



Member of the association of German machine tools dealers FDM and machine dealer with own stock of 2500 m².

-
