pressure 125 t
stroke 50 mm
no. of strokes 50 - 180 Hub/min
sheet thickness - max. 3 mm
distance between columns 1200 mm
distance table - lower edge of ram max. 540 mm
ram adjustment 60 mm
table surface area 1160 x 700 mm
clamping plate 1140 x 680 x 120 mm
surface area of ram 1000 x 620 mm
main drive 15 PS
weight of the machine ca. 18,8 t
dimensions of the machine ca. 3,1 x 1,8 x 3,58 m

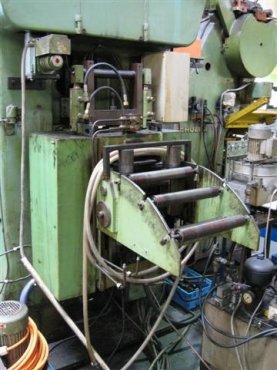

Roll feed device

Machine with double roller feeder WA 32:
Feed adjustable from 0 - max 320 mm.
Max. strip width 320 mm
inlet height from top platen 80-135 mm
