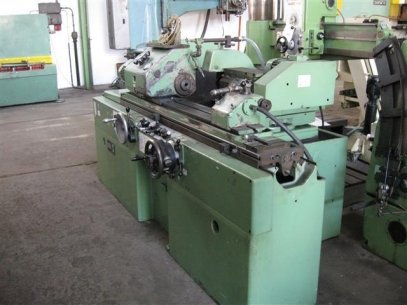

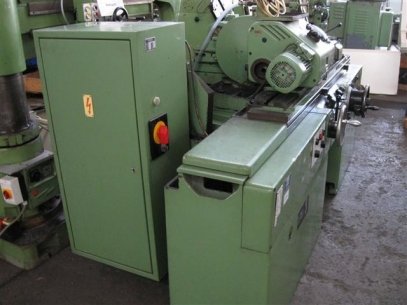

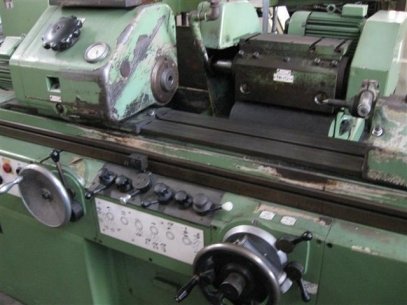

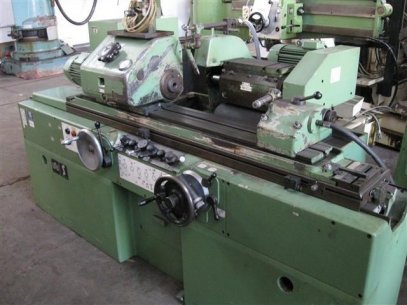

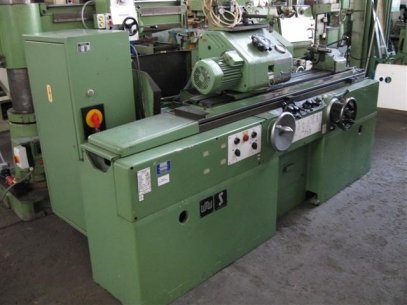

grinding diameter 140 mm
grinding length 800 mm
centre height 110 mm
max. workpiece diameter 200 mm
swing dia. 210 mm
workpiece weight max. 40 kg
dimensions of grinding wheel 400 x 40 x 127 mm
grinding wheel speeds 1650/2050 U/min
workpiece turning speeds 36 - 420 U/min
table speed -stepless- 0,1 - 6 m/min
independent disposition at table stroke mm
power capacity - grinding spindle 3,5 kW
power capacity - workpiece spindle 0,8 kW
driving capacity - oil pump motor 1,6 kW
power capacity - cooling pump 0,1 kW
weight of the machine ca. 3,7 t
dimensions of the machine ca. 3,6 x 1,5 x 1,4 m
Electric 380 Volt Gesamtleistung 10,3 KW
Cooling equipment
Resessing feed hydr.
Machinelight
Draw-off device am Reitstock

with automatic, elektrohydr. work cycle, the spindle bore in the headstock is continuous and has 29 mm in diameter.

Member of the association of German machine tools dealers FDM and machine dealer with own stock of 2500 m².

-
