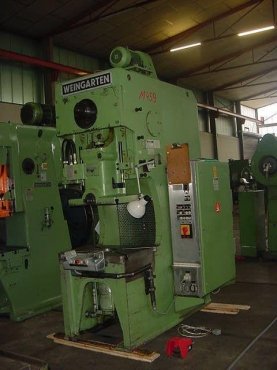

Pneumatic. Clutch-brake combination ORTLINGHAUS double brakes, wheels, countershaft running in an oil bath, fixed table, FRONT. Thrust bearing, hydr. Overload protection, safe UVV 2-Hand-Bedienung/Handeinlegearbeiten, motor 5,5 kW, 380 volt, weight about 4,800 kg of pressure about 63 tons capacity overhang through about 315 mm in the stand backward slide adjustment 450 mm approx 63 mm ram area 550 x 360 mm Hubverstellbarkeit of about 8 - 100 mm Number of strokes 70 min-1 table size 750 x 550 mm in Durchfalloch table around. 200 mm distance table - ram, max. Stroke down, adjustment up about 335 mm with central lubrication with control with a foot switch 380 volt electrical connection
