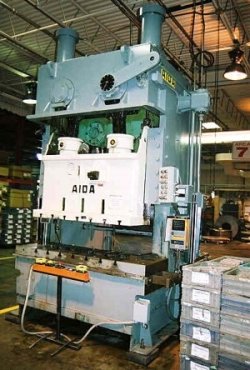

165 TON AIDA GAP FRAME, DOUBLE CRANK PRESS - PREOWNED
Model: #PDC - 15
Capacity: 165 TONS
Stroke: 7.87"
Shut Height to Bed: 22-1/2"
Bed Area: 77" RL X 25-1/2" FB
Speed: 30 - 45 SPM (VARIABLE)
Ram Area: 58" RL X 21-1/2" FB
Ram Adjustment: 3-1/2" (MOTORIZED)
Bolster Size: 4-1/2" X 77" RL X 26" FB (T-SLOT)
Hole in Bolster: 57" RL X 8-1/4" FB
Dist. Uprights/Floor to Bed: 59" / 33"
Electrics: EDDY CURRENT DRIVE MOTOR
PALM BUTTON CONTROLS
Aprox. Dimensions: 13'8" H X 8'6" RL X 7' FB
Approx. Weight: 55,000 LBS.
Equipped With: AIR CUSHIONS IN THE BED
HYDRAULIC OVERLOAD SYSTEM IN RAM
CAST IRON FRAME CONSTRUCTION
AUTOMATIC LUBRICATION SYSTEM
FLOOR STANDING BASE
TRIAD LIGHT CURTAINS WITH MIRRORS
Year: 1973
Condition: GOOD
Location: COLUMBIA, TN (Nashville area)
