Reconditioned, Excellent, '84

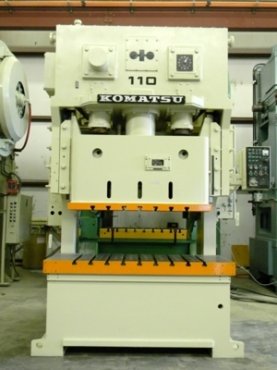

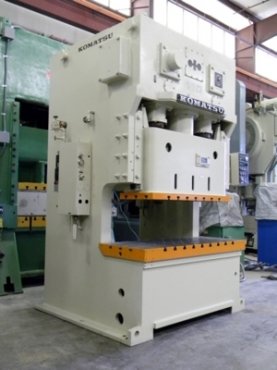

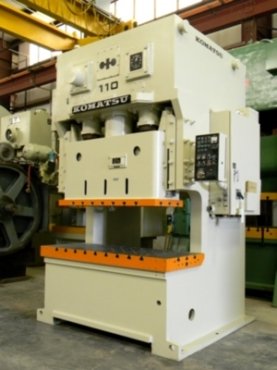

121 TON KOMATSU GAP FRAME, DOUBLE CRANK PRESS - RECONDITIONED
Model: #OBW 110-2
Capacity: 121 TON
Stroke: 7"
Max. Shut Height to Bed: 20.5" TO BED (15.75" TO 4.75"BOLSTER)
Bed Area: 71" RL X 27.5" FB
Speed: 35 TO 70 SPM
Ram Area: 55" RL X 20" FB T-SLOTTED
Ram Adjustment: 4" POWERED

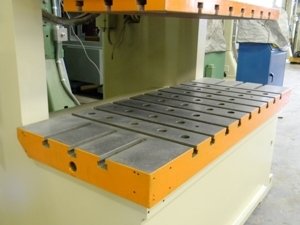

Bolster Size: 4.72" X 71" RL X 27.5" FB T-SLOTTED
Distance Floor to Bed: 31" (35" TO BOLSTER)
Distance Between Uprights: 57" RL
Clutch: AIR CLUTCH AND BRAKE

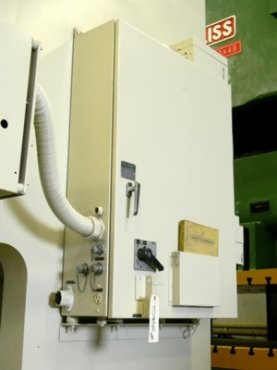

Electrics: 15 HP, 230/460-3-60 MOTOR AND CONTROL
Approx. Dimensions: 11' HIGH, 8' RL, 6' FB
Approx. Weight: 38,000 LBS.
Equipped With: HYDRAULIC OVERLOADS
AIR COUNTERBALANCED RAM
STEEL FRAME CONSTRUCTION
AUTOMATIC LUBRICATION

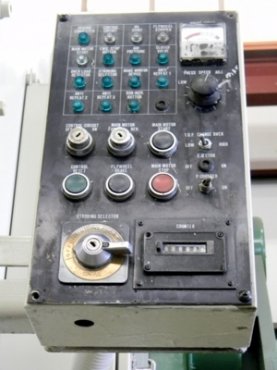

PALM BUTTON STAND
Year: 1984
Condition: EXCELLENT / RECONDITIONED
Location: COLUMBIA, TN (Nashville)

6' X 8' X 11'

38,000
