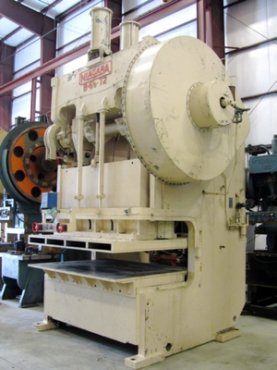

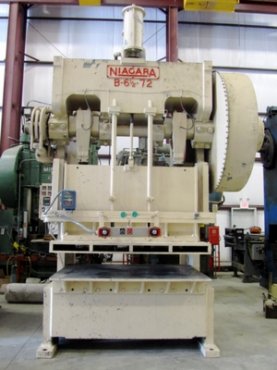

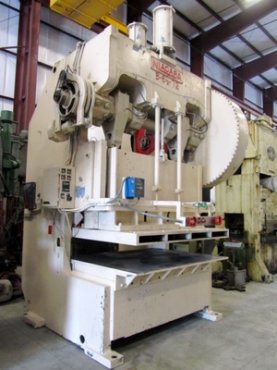

222 TON NIAGARA GAP FRAME, DOUBLE CRANK PRESS - PREOWNED
MODEL: No. B6-1/2-72
CAPACITY: 222 TON
STROKE: 6"
SHUT HEIGHT TO BED: 22-1/2" SDAU
BED AREA: 72" RL X 32-1/2" FB
RAM ADJUSTMENT: 4-7/8" (MOTORIZED)
SPEED: 30 SPM
RAM AREA: 67" RL X 30" FB
BOLSTER SIZES: (BED) 5" X 72" RL X 58" FB
(RAM) 4-3/4" X 72" RL X 58" FB
DIST UPRIGHTS / FLOOR TO BED: 73-1/2" / 37-1/2" (TOP BOLSTER)
CLUTCH: NIAGARA AIR SLEEVE CLUTCH
ELECTRICS: 20 HP MOTOR, 1750 RPM, 480/3/60V
MOTOR & SOLID STATE CIECO

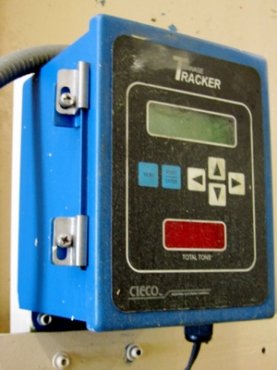

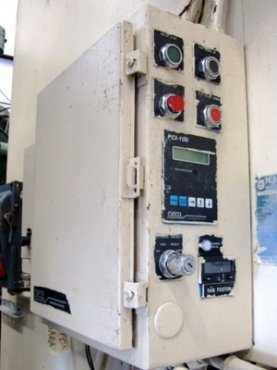

PC-1100 CTRL & TONNAGE MONITOR
APPROX DIMENSIONS: 14'8" H X 10'10" RL X 8'6' FB
APPROX WEIGHT: 65,000 LBS.
EQUIPPED WITH: STEEL FRAME CONSTRUCTION
AIR COUNTERBALANCES
FLOOR STANDING BASE
(2) KNOCK-OUT SLOTS IN RAM

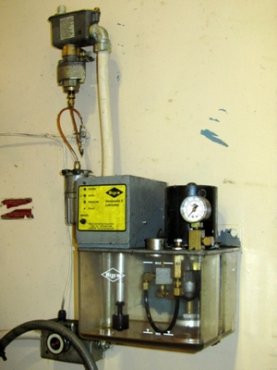

BIJUR VERSAMATIC II LUBRICATOR
SINGLE END DRIVE
SINGLE BACK GEARED
YEAR: 1956
CONDITION: GOOD
LOCATION: COLUMBIA, TN
