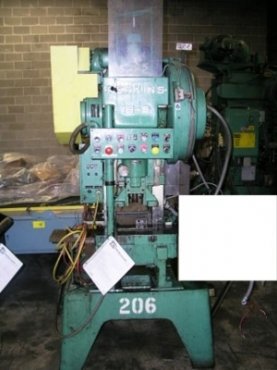

15 TON PERKINS GAP FRAME PRESS
PRICE: Loaded on Truck, Our Warehouse, York, PA



Stock # 06225

Serial # 33256 New 1965 Model # 15-S

Stroke: 1-1/2"

Adjustment: 2-1/4"

Shut Height: 7-1/4"

SPM: Variable

Bed Size: 10" x 20"

Die Shank Hole Diameter: 1-1/2"

Center of Ram Back to Frame: 5-1/2"

Tie Rod Construction with (1) Tie Rod

Air Clutch & Brake

Bijure Auto Lube System

Pneumatic Ram Counter Balance

MISSING: Ram Die Clamping Block

2 HP US Vari Speed Drive, Wired 3 Phase, 60 Cycle, 208-220-440 Volts

Bolster Plate: 10" x 20" x 2-1/2" with 2" W x 12" L Hole

Operator Controls for Inch, Bar, Single Stroke, Continuous Run, Top Stop, Hand

or Foot Selector, Presently Cycled with (2) Push Buttons, No Foot Pedal

Missing Die Clamp

Overall Dimensions: 46" L-R x 43" F-B x 92" H
