Reconditioned, Excellent, w/Feed, Year 2000

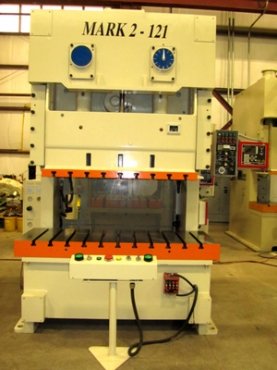

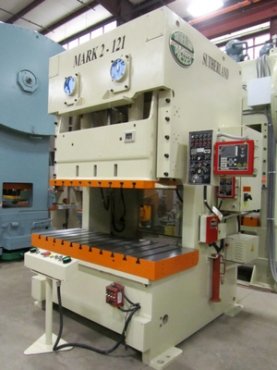

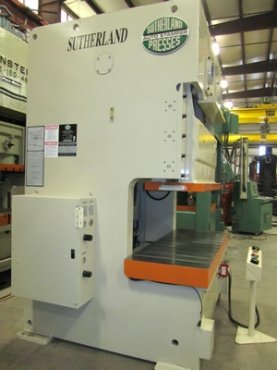

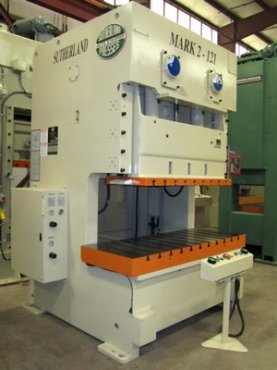

121 TON SUTHERLAND GAP FRAME, DOUBLE CRANK PRESS - RECONDITIONED
Model: #MARK 2-121-2W
Capacity: 110 TON (METRIC) 121 TON (US)
STROKE: 180 MM 7"
Shut Height on Bed 548 MM 21.6"
Shut Height on Bolster: 400 MM 15.7"
Bed Area: 74" RL X 27" FB
Ram Adjustment: 3-1/2" (MOTORIZED)
Speed: 35 - 65 SPM (VARIABLE)

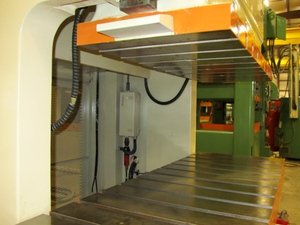

Ram Area: 56" RL X 20.4" FB (T-SLOTTED)

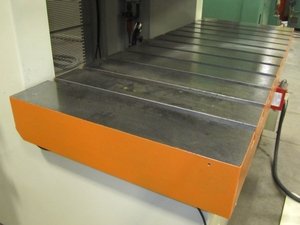

Bolster Size: 5.9" TH X 74" RL X 27" FB (T-SLOT)
Dist Uprights / Floor to Bed: 57-1/2" / 35.4"
Clutch: AIR CLUTCH & BRAKE

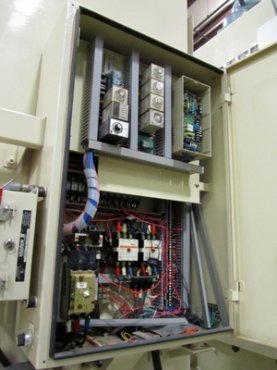

Electrics: 15 HP EDDY CURRENT DRIVE, 1740 RPM
230/3/60V
Approx. Dimensions: 10'2" H X 7'3" RL X 5'10" FB
Approx. Weight: 31,000 LBS.
Equipped With: FLOOR STANDING BASE
DIE LIFTERS
LIGHT CURTAINS
AIR COUNTERBALANCES
WADDINGTON FEED
Year: 2000
Condition: EXCELLENT/RECONDITIONED
Location: COLUMBIA, TN (Nashville)

5'10" x 7'3" x 10'2"

31,000
