Power: 1.300 kN
Size of bolster: 660 x 900 mm (B x T)
Size of ram: 390 x 500 mm
Overhang: 330 mm
Daylight: 325 mm (Groesster Hub oben, Verstellung oben)
Frequency: 30…55 1/min (step less adjustable by inverter)
Stroke: 20...100 mm
Ram adjustment: 75 mm
Opening in bolster: 500 x 160 mm
Other
- Mechanic overload device in ram
- pneumatic clutch (Ortlinghaus)
- Motorized grease lubrication
- 4 pc. machinefeet

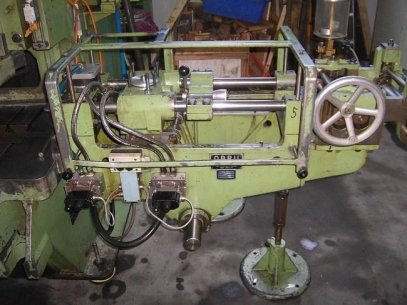

Strip feeding:
gripper feeder with straightening device
Make: OBRU
Width: max. 200 mm
Feeding length: max. 350 mm
