Power: 32 to
Size of bolster: 440 x 420 mm
Strokes/min(adjustable): 160...800 rpm
Stroke: 6...50 mm
Size of ram: 360 x 310 mm
Ram adjustment: 50 mm
Shutheight (stroke dwon, adjustment up) 260 mm
Weight: app. 4.000kg
Power of motor: 4 kW
stepless adjustment of speed
automatic UDP. adjustment
dynamic mass evaluation
pneumatic ram balancing cylinders

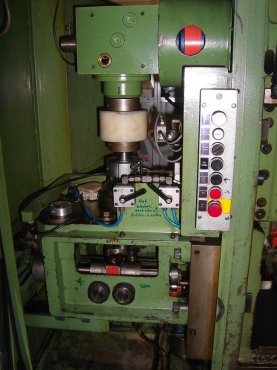

Kaiser gripper feeder
Type: ZR 12
Yoc: 1990
Width 0...120 mm
Feeding length: 0...100 mm
