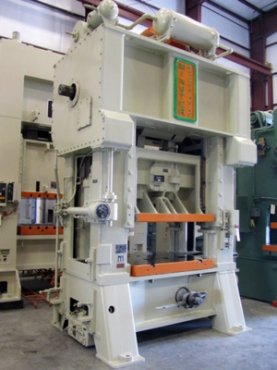

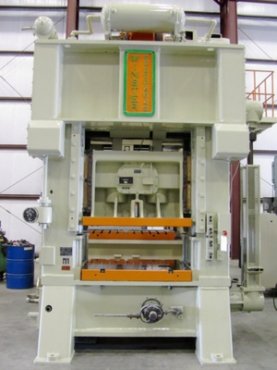

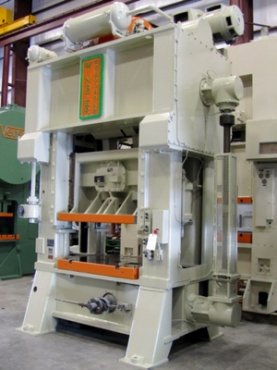

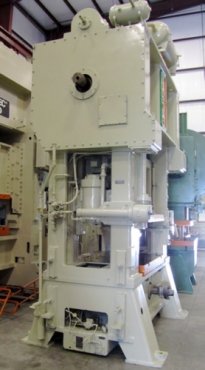

200 TON MINSTER HIGH SPEED PRODUCTION PRESS - RECONDITIONED
MODEL: No. E2-200-48-42
CAPACITY: 200 TON
STROKE: 6"
SHUT HEIGHT TO BED: 23" SDAU

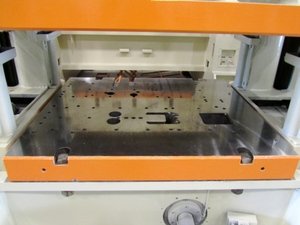

BED AREA: 48" RL X 42" FB
RAM ADJUSTMENT: 5" (MOTORIZED)

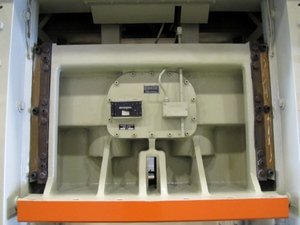

RAM AREA: 48" RL X 42" FB
SPEED: 50 - 100 SPM (VARIABLE)

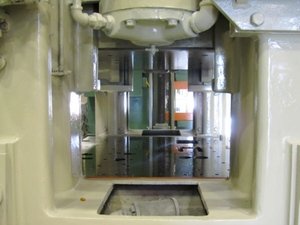

WINDOW SIZE: 21" WIDE X 17" HIGH

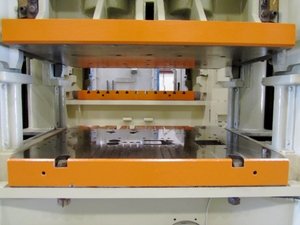

BOLSTER SIZES: 3-1/2" X 48" RL X 42" FB (RAM)
5" X 48" RL X 42" FB (BED)
CLUTCH: MINSTER AIR CLUTCH & BRAKE
ELECTRICS: EDDY CURRENT DRIVE MOTOR & CONTROLS

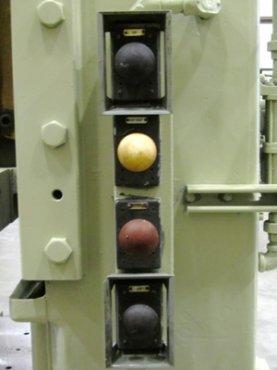

WINTRISS LIGHTS (F&R)
APPROX. DIMENSIONS: 13'6 H X 10' RL X 5'6" FB
APPROX. WEIGHT: 70,000 LBS.
EQUIPPED WITH: FLOOR STANDING BASE
AIR COUNTERBALANCES
TIE ROD
KEYED FRAME
CAST IRON FRAME CONSTRUCTION
TRABON AUTOMATIC RECIRCULATING LUBRICATION SYSTEM
*** PRICE INCLUDES A NEW CIECO PLS PLUS CLUTCH CONTROL ***
YEAR: 1962
CONDITION: VERY GOOD/RECONDITIONED
LOCATION: OUR COLUMBIA, TN WAREHOUSE (Nashville area)
