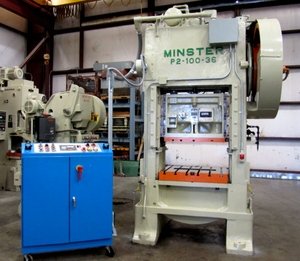

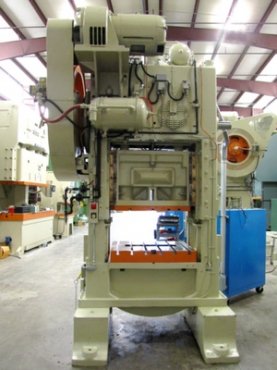

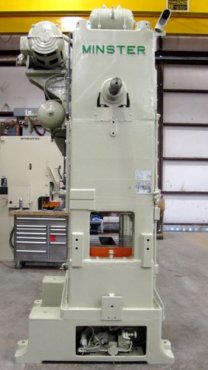

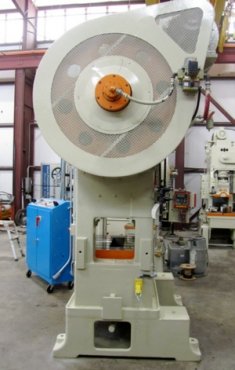

100 TON MINSTER HIGH SPEED PRODUCTION PRESS - RECONDITIONED
MODEL: No. P2-100-36
CAPACITY: 100 TON
STROKE: 4"
SHUT HEIGHT TO BED: 22" (SDAU)
BED AREA: 36" RL X 31" FB
RAM ADJUSTMENT: 4"
SPEED: 90 - 180 SPM (VARIABLE)
RAM AREA: 33" RL X 18-1/2" FB
WINDOW SIZE: 16" FB X 17-1/2" H
DIST UPRIGHTS / FLOOR TO BED: 36" / 34"
BOLSTER SIZES:
RAM PLATE: 2" X 33" RL X 18-1/2" FB (T-SLOT)

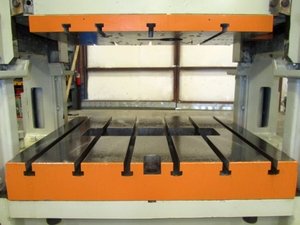

BED PLATE: 5" X 36" RL X 31" FB (T-SLOTTED)
CLUTCH: MINSTER AIR CLUTCH & BRAKE

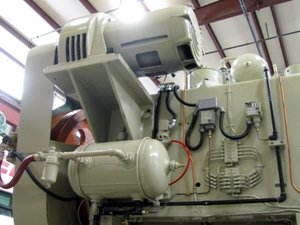

ELECTRICS: 20 HP, 1170 RPM,208-220/440/3/60V
LOUIS ALLIS EDDY CURRENT MOTOR
APPROX DIMENSIONS: 11'10" H X 7' RL X 6' FB
APPROX WEIGHT: 18,000 LBS
EQUIPPED WITH: CAST IRON FRAME CONSTRUCTION

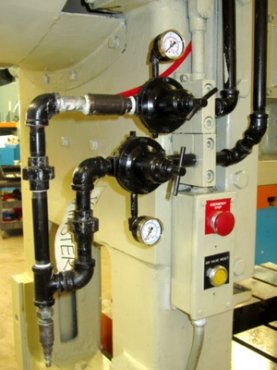

AIR COUNTERBALANCES
AUTOMATIC RECIRCULATING LUBRICATION SYSTEM

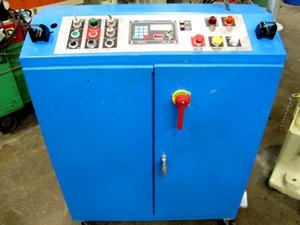

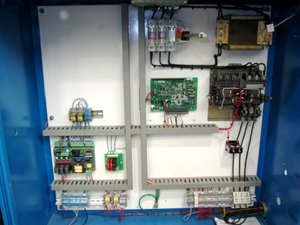

**RECONDITIONING INCLUDED: UPDATED CIECO PLS PLUS CLUTCH CONTROL & PANEL
YEAR: 1963
CONDITION: VERY GOOD/RECONDITIONED
LOCATION: OUR COLUMBIA, TN WAREHOUSE (Nashville area)
