Reconditioned, Rebuilt clutch & brake, New controls

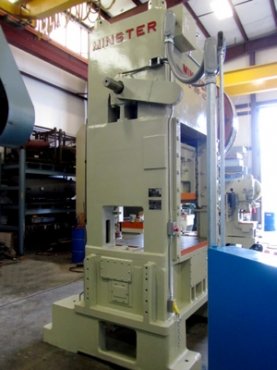

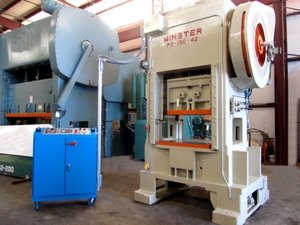

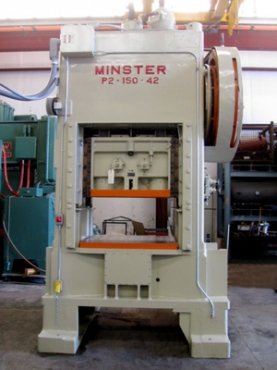

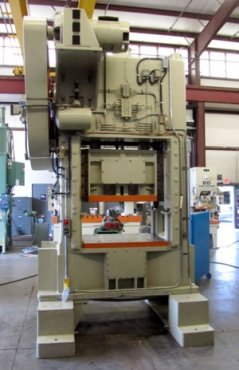

150 TON MINSTER HIGH SPEED PRODUCTION PRESS - RECONDITIONED
MODEL: No. P2-150-42
CAPACITY: 150 TON
STROKE: 2"
SHUT HEIGHT TO BED: 23" (SDAU)

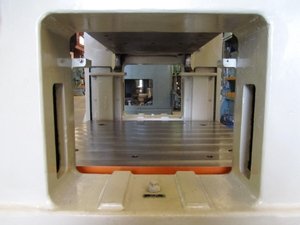

BED AREA: 42" RL X 40" FB
SPEED: 125-250 SPM (VARIABLE)
RAM AREA: 48" RL X 23" FB
RAM ADJUSTMENT: 4"
WINDOW SIZE: 20" FB X 17" H
DIST UPRIGHTS / FLOOR TO BED: 42" / 43"
CLUTCH: MINSTER AIR CLUTCH & BRAKE
ELECTRICS: 30 HP, 1680 RPM, 440/3/60V
NEW EDDY-CURRENT DRIVE & CIECO PNL
APPROX DIMENSIONS: 14' H X 8' RL X 6' FB
APPROX WEIGHT: 45,000 LBS
YEAR: 1966
EQUIPPED WITH: CAST IRON FRAME CONSTRUCTION
FLOOR STANDING BASE
AIR COUNTERBALANCES
*** REBUILT AIR CLUTCH/BRAKE & FLYWHEEL BEARINGS, GROUND
BOLSTER PLATE, REPACKED AIR COUNTERBALANCES .024 TOTAL DROP***

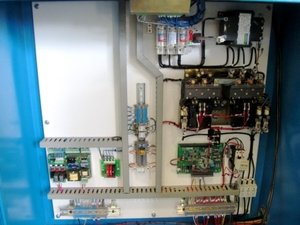

*** NEW CIECO PLS PLUS CONTROL & NEW TORSPEC DRIVE BOARD ***
CONDITION: EXCELLENT/RECONDITIONED
LOCATION: OUR COLUMBIA, TN WAREHOUSE (Nashville area)

14'6"H x 8'RL x 6'FB

45,000
