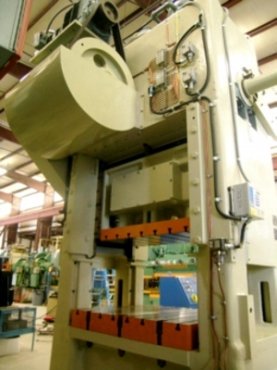

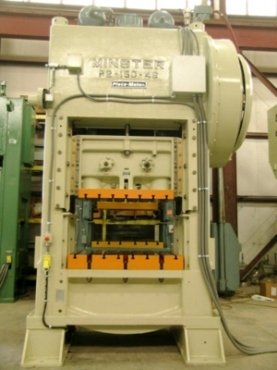

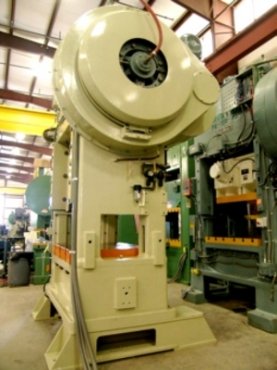

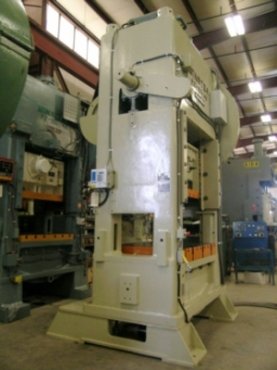

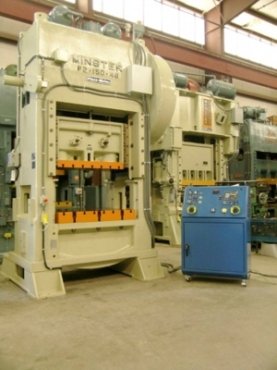

150 TON MINSTER HIGH SPEED PRODUCTION PRESS - RECONDITIONED
Model: #P2-150-48
Capacity: 150 TON
Stroke: 6"
Shut Height to Bed: 28" SDAU
Bed Area: 48" RL X 36" FB
Ram Adjustment: 4" (NON MOTORIZED)
Ram Area: 46" RL X 23" FB (T-SLOTTED)
Speed: 50 - 100 SPM (VARIABLE)
Bolster Sizes:
Ram: 5" X 42" RL X 23" FB (T-SLOTTED)

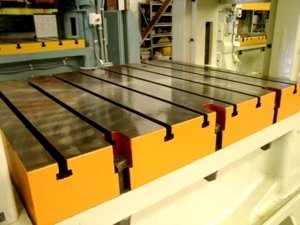

Bed: 6" X 48" RL X 36" FB (T-SLOTTED)
Dist Uprights/Floor to Bed: 48" / 36"
Window Size: 20" FB X 18" H
Clutch: AIR CLUTCH & BRAKE
Electrics: 25HP, 1750RPM, 440V, EDDY-CURRENT DRIVE MOTOR & CTRLS.
Approx. Dimensions: 12'8" H X 8'6" RL X 6' FB
Approx. Weight: 50,000 LBS.
Equipped With: FLOOR STANDING BASE
CAST IRON FRAME CONSTRUCTION
SINGLE BACK GEARED
SINGLE END DRIVE W/GEARS IN OIL
AIR COUNTERBALANCES
RECIRCULATING LUBRICATION SYSTEM
NEW CIECO CLUTCH CONTROL

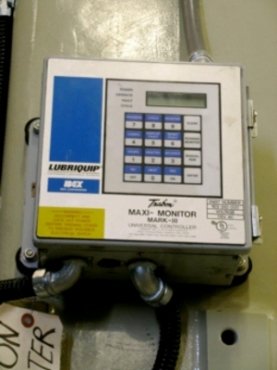

TRABON LUBRICATION CONTROLLER
Reconditioning Completed: RAM SQUARED
REBUILT WITH NEW RAM PINS

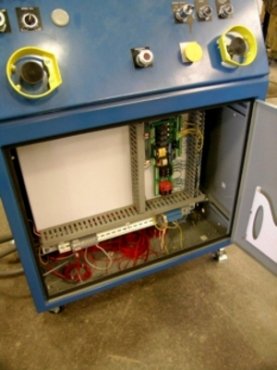

UPDATED CIECO CONTROL
NEW PUMP, MOTOR & LUBRICATION BLOCKS
Year: 1962
Condition: EXCELLENT! / RECONDITIONED
Location: COLUMBIA, TN (Nashville)
