w/Wintriss Smartpac Control w/Diepro system, #M3831

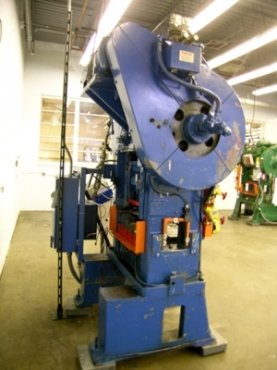

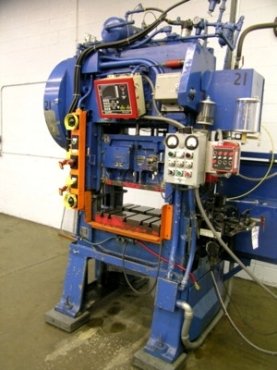

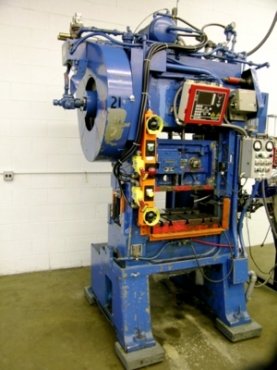

30 TON MINSTER PIECE MAKER HIGH SPEED PRODUCTION PRESS - PREOWNED
Model: #P2-30-24
Capacity: 30 TON
Stroke: 2"
Shut Height to Bed: 12-1/2" SDAU
Bed Area: 24" RL X 19" FB
Speed: 150 - 300 SPM
Ram Area: 23" RL X 12" FB
Ram Adjustment: 2"
Bolster Size: 3-1/2" X 24" RL X 19" FB T-SLOTTED
Dist. Uprights/Floor to Bed: 24" / 32"
Clutch: AIR CLUTCH & BRAKE
Electrics: 10 HP, 1715 RPM, 220/440/3/60V
MOTOR & CONTROLS
Approx. Dimensions: 9'H X 6'RL X 5' FB
Approx. Weight: 8,500 LBS.
Equipped With: AIR COUNTERBALANCED RAM
AUTO RECIRCULATING LUBE SYSTEM
FLOOR STANDING BASE
WINTRISS SMARTPAC CONTROL
w/DIEPRO SYSTEM
Location: COLUMBIA, TN (Nashville)

5' x 6' x 9'

8,500
