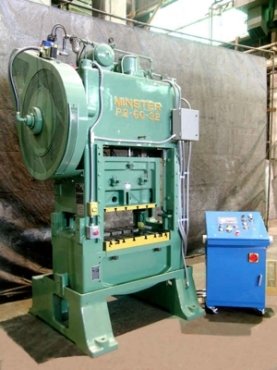

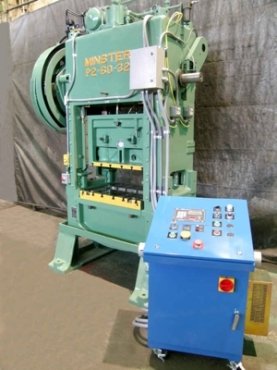

60 TON MINSTER HIGH SPEED PRODUCTION PRESS - MOSTLY REBUILT
Model: #P2-60
Capacity: 60 TON
Stroke: 3"
Shut Height to Bed: 12" SDAU
Bed Area: 32" RL X 25" FB
Speed: 100-200 SPM (VARIABLE)
Ram Adjustment: 3"
Ram Area: 31" RL X 15" FB
Bolster Size: 3-1/2 X 32" RL X 25" FB (T-SLOT)
Dist Uprights/Floor to Bed:36" / 32-1/2"
Clutch: MINSTER AIR CLUTCH & BRAKE
Electrics: NEW 10 HP ELEKTRIM MOTOR
1745 RPM, 460/3/60V
ALLEN BRADLEY INVERTER
NEW CIECO CLUTCH CONTROL
Approx. Dimensions: 8'10" H X 7' RL X 5' FB
Approx. Weight: 18,000 LBS.
Equipped With: CAST IRON FRAME CONSTRUCTION
RECIRCULATING OIL LUBRICATION SYSTEM
FLOOR STANDING BASE
NEW TIE RODS
NEW 4" SPACERS IN UPRIGHTS
AIR COUNTERBALANCED RAM
SURGE TANK
***NEW 3" STROKE CRANKSHAFT & NEW PIN CONNECTIONS IN RAM***
Year: 1962
Condition: EXCELLENT / MOSTLY REBUILT
Location: COLUMBIA, TN (Nashville)
