Reconditioned, Excellent, (2), '96

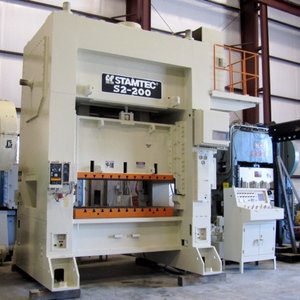

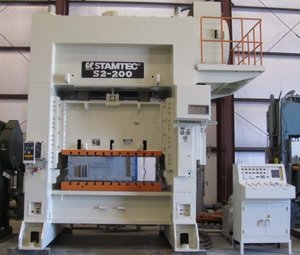

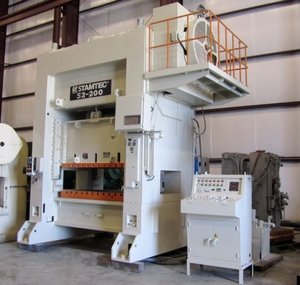

220 TON STAMTEC HIGH SPEED PRODUCTION PRESS - RECONDITIONED
*NOTE: 2 IN STOCK
MODEL NO.: S2-200
CAPACITY: 220 TONS (US)
STROKE: 5.910"
SHUT HEIGHT TO BED: 21.957" (SDAU)
15.957" (OVER BOLSTER)
BED AREA: 86" RL X 48" FB
SPEED: 60 - 120 SPM (VARIABLE)
RAM ADJUSTMENT: 5.910 " (MOTORIZED)

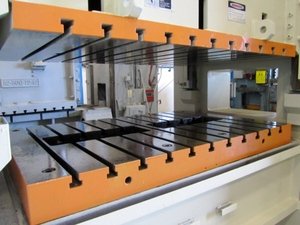

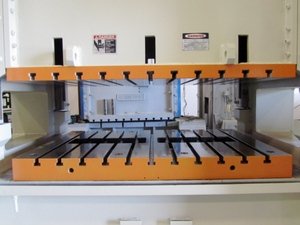

RAM AREA: 72" RL X 48" FB (T-SLOTTED)
BOLSTER SIZE: 6" X 72" RL X 48" FB (T-SLOTTED)
DIST UPRIGHTS / FLOOR TO BED: 86" / 37"
WINDOW SIZE: 31" FB X 18" H
CLUTCH: AIR CLUTCH & BRAKE

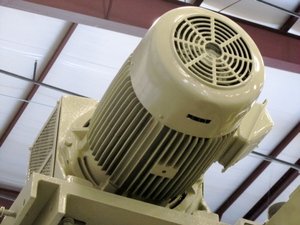

ELECTRICS: 50 HP, 1800 RPM, 440/3//60V

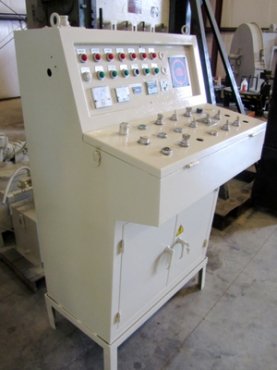

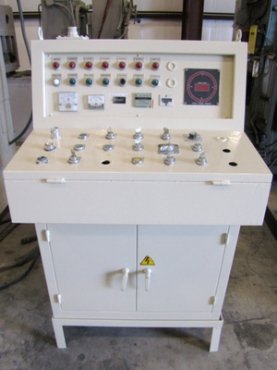

EDDY-CURRENT MOTOR & CONTROLS
APPROX. DIMENSIONS: 16' H X 13' W X 8'6" FB
APPROX. WEIGHT: 70,000 LBS.
EQUIPPED WITH: SINGLE BACK GEARED DESIGN
FLOOR STANDING BASE
LIGHT CURTAINS (FRONT & REAR)

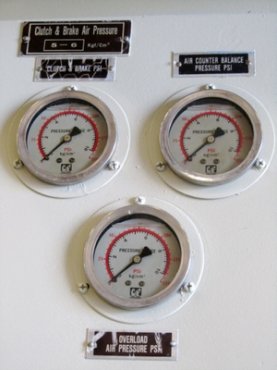

AIR COUNTERBALANCES
GEARS OPERATE IN OIL

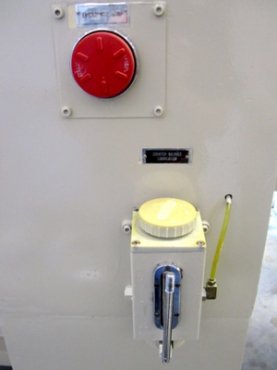

RECIRCULATING OIL LUBRICATION SYSTEM
YEAR: 1996
CONDITION: EXCELLENT/RECONDITIONED
LOCATION: COLUMBIA, TN (Nashville)

16' H, 13' W x 8'6" FB

70,000
