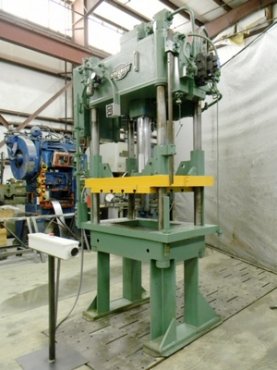

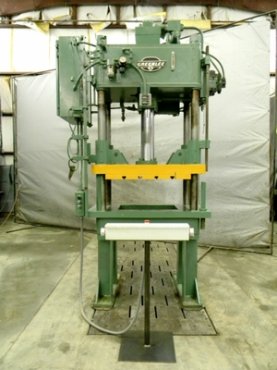

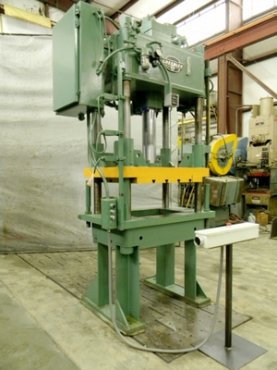

28 TON GREENLEE (4-POST) DOWN ACTING HYDRAULIC PRESS - RECONDITIONED
Model: #28T4BAR
Capacity: 28 TON
Stroke: 15"
Daylight: 32"
Overall Bed & Ram Area: 47" RL X 29" FB
Usable Bed Area: 47" RL X 16-1/2" FB or 32-1/2" RL X 28" FB
Distance Between Posts: 32-1/2" RL X 16-1/2" FB
Bolster Size: 2" X 32" RL X 27" FB (T-SLOTTED) RAM
3" X 32" RL X 28" FB BED
Floor to Bed: 37"
Post Size: 3" OD
Hole in Bed: 22" RL X 9" FB

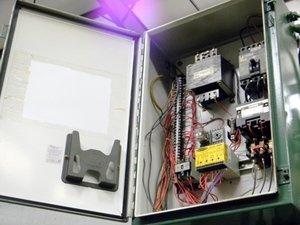

Electrics: 15 HP, 1200 RPM, 230/460/3/60V
Approx. Dimensions: 9'6" H X 5'6" RL X 4' FB
Approx. Weight: 6,000 LB.
Condition: EXCELLENT/RECONDITIONED
Location: COLUMBIA, TN (Nashville)
