Description:

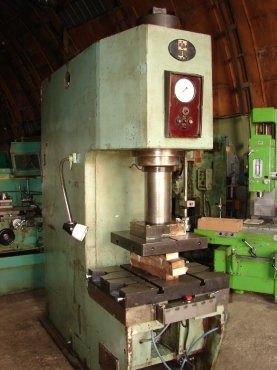

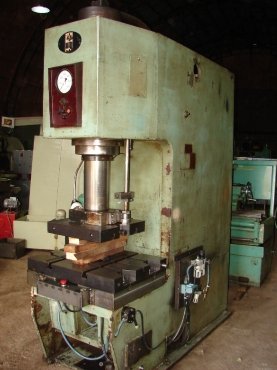

Hydraulic press is intended for pressing, bending, stamping, piercing, leveling and straightening of parts.
Hydraulic Press is used in the single and mass production.

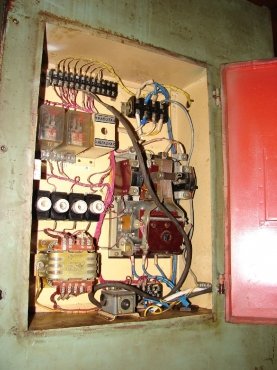

The press is in excellent condition. The electrical part is overhouled. Machine is ready for use. Press is equipped with ejector.
Specifications:
Manufactured by Tyazhpressmash(Russia)
Year of manufacture 1981
Capacity, tons 100
Slider stroke, mm 500
Max. distance between table and slider, mm 750
Distance from the axis of the slider to frame (radius), mm 400
Slider speed, mm\s:
- approach speed 80
- pressing speed 12,5
- retract speed 236

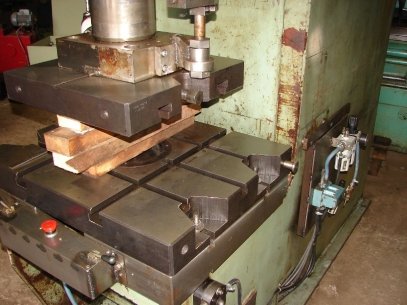

Table dimensions, mm 800 x 600
Table gap dimensions, mm 200 x 415
Table height above floor, mm 745

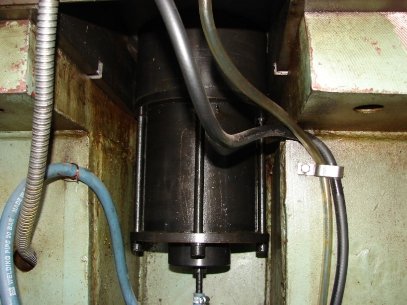

Main motor power, kW 18,5
Voltage, V x Hz 380 x 50
Machine dimensions, mm 2720 x 900 x 2150
Machine weight, kg 5600
Dimensions:
2720 x 900 x 2150 mm
Weight:
5600 kg
