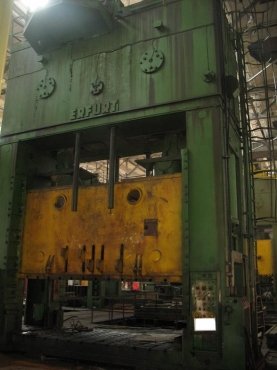

2 pcs. available
Year of manufacture 1977 – machine without electrics
Year of manufacture 1984 – machine under power
Specifications:
Table: 4000 X 1800 mm
Press weight: 230 ton
Force: 1250 t
Slide stroke: 630 mm
Centres of pressure : 2
Adjustability of slide : 630 mm
Max daylight between bolster and slide: 1165 mm
Width between columns : 4000 mm
Slide area (WxD) : 3950x1800 mm
Bed area (WxD) : 4000x1800 mm
Opening in bed (WxD) : 3750x1300 mm
Main motor power : 132 kW
Idle stroke rate : 11 per min
Counterpressure of cushion in bed : 250 T
Stroke of cushion plate : 250 mm
